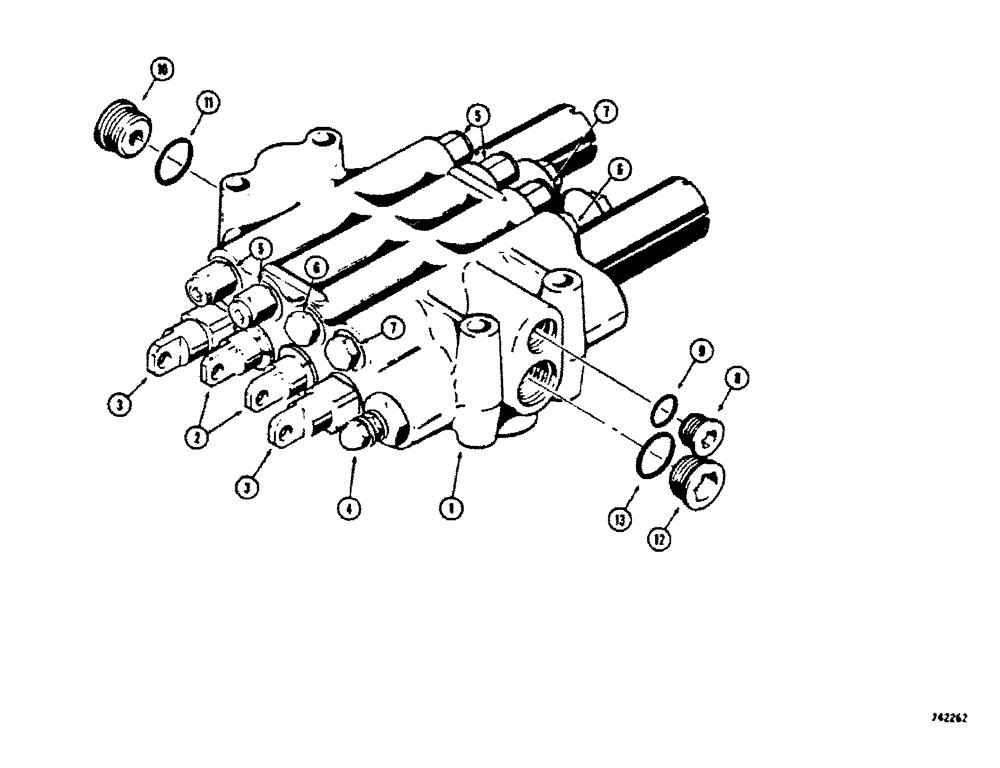

Запчасти Case 450 (230[1]) - R30045 ANGLE DOZER CONTROL VALVE (4 SPOOL) USED WITH DUAL PULL BEHIND HYDRAULICS (07) - HYDRAULIC SYSTEM

1

R33802

SCREW

VALVE - equipment control (four spool), Includes: Ref. 2 - 13

1шт.

2

D37050

SPOOL

SPOOL - three position, parts list Figure 242

2шт.

2

D37051

SPOOL

SPOOL - three position, parts list Figure 242

2шт.

2

D37052

SPOOL

SPOOL - three position, parts list Figure 242

2шт.

2

D37053

SPOOL

SPOOL - three position, parts list Figure 242

2шт.

3

D46024

SPOOL

SPOOL - four position, parts list Figure 234

2шт.

3

D46025

SPOOL

SPOOL - four position, parts list Figure 234

2шт.

3

D46026

PLUG

SPOOL - four position, parts list Figure 234

2шт.

3

N6592

VALVE

SPOOL - four position, parts list Figure 234

2шт.

3

D46027

SPOOL

SPOOL - four position, parts list Figure 234

2шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 242

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, parts list Figure 236

4шт.

6

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 238

2шт.

7

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 238

2шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 9

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 13

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
