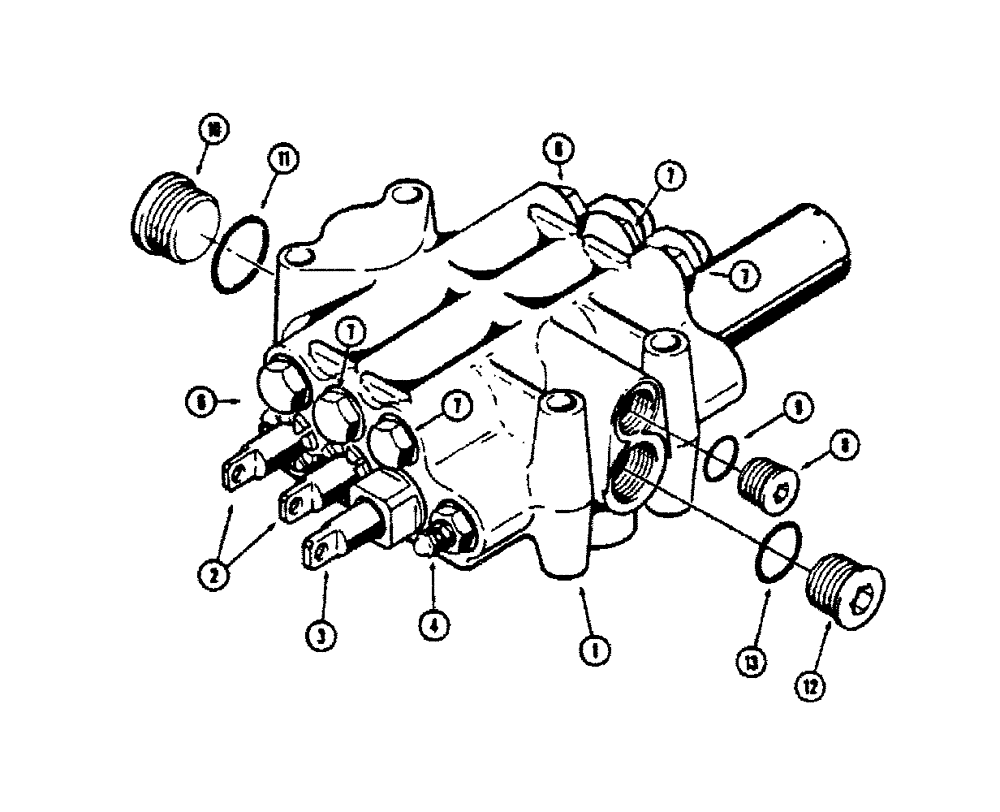

Запчасти Case 450 (226) - R30046 DOZER CTRL VALVE (3 SPOOL), USED ON ANGLE TILT DOZERS & ANGLE DOZERS, W/RIPPER OR PULL BEHIND (07) - HYDRAULIC SYSTEM

1

R30046

VALVE

- equipment control, three spool, Includes: Ref. 2 - 13

1шт.

2

D37050

SPOOL

- three position, parts list Figure 242

2шт.

2

D37051

SPOOL

- three position, parts list Figure 242

2шт.

2

D37052

SPOOL

- three position,parts list Figure 242

2шт.

2

D37053

SPOOL

- three position, parts list Figure 242

2шт.

3

D46024

SPOOL

- four position, parts list Figure 234

1шт.

3

D46025

SPOOL

- four position, parts list Figure 234

1шт.

3

N6592

VALVE

SPOOL - four position, parts list Figure 234

1шт.

3

D46027

SPOOL

- four position, parts list Figure 234

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 242

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 238

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 238

2шт.

7

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 238

3шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 9 Hex Soc, 3/4"-16 ORB

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref. 11 Hex Soc, 1 1/16"-12 ORB

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 13 Hex Soc, 1 5/16"-12 ORB

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
