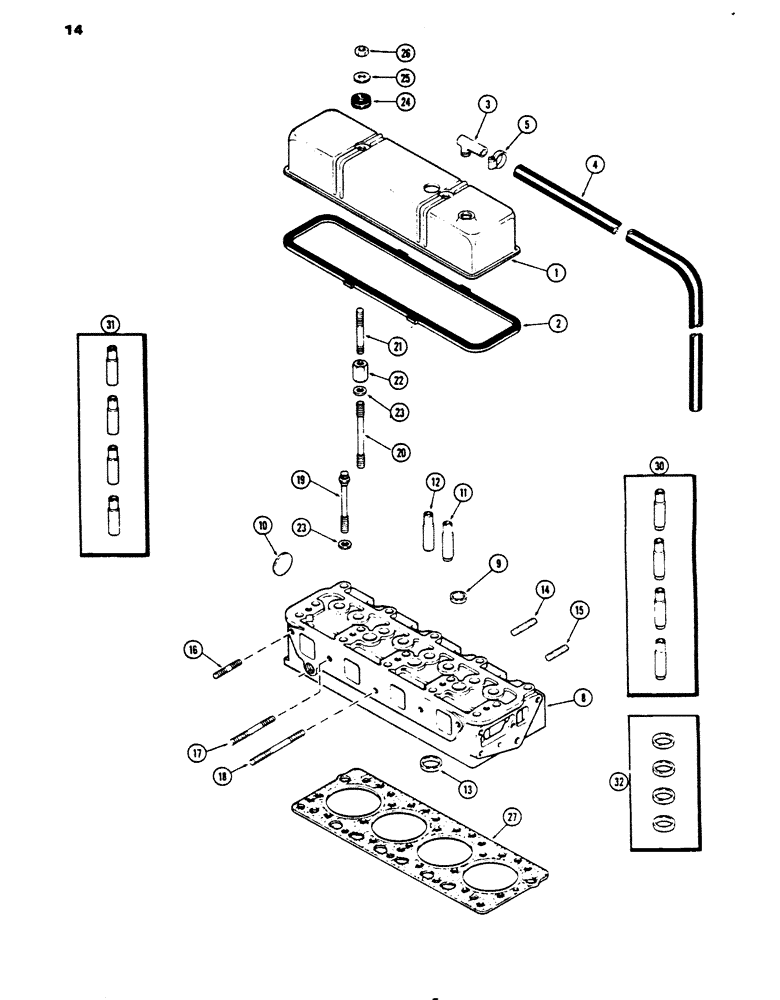

Запчасти Case 450 (014) - CYLINDER AND COVER, 207 DIESEL ENGINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A36815
COVER
- cylinder head
1шт.
2
A43030
GASKET,3.05mm Thk
- cover to cylinder head
1шт.
4
A39570
HOSE
- breather hose
1шт.
5
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - breather hose (9/16" to 1-1/16")
1шт.
8
A150385
HEAD
ASSY. - cylinder (Casting No. A150384) (Rpl. A37856), Includes: Ref. 9 - 18
1шт.
9
41-1016
PLUG,Cup, 1"
- top (1" cup type)
3шт.
10
41-1028
PLUG,Cup, 1 3/4"
- rear (1-3/4" cup type)
1шт.
11
G2069
GUIDE
- exhaust valve (See Ref. 30)
4шт.
12
G2068
GUIDE
- intake valve (See Ref. 31)
4шт.
13
A39268
INSERT
- exhaust valve seat (See Ref. 32)
4шт.
14
A39129
STUD
- exhaust manifold, clamps (3/8" N.C. x 2-1/16")
3шт.
15
A29431
STUD
- exhaust manifold, ends (3/8" N.C. x 1-3/4")
2шт.
16
A140924
STUD
- intake manifold, ends (3/8" N.C. x 2-7/16")
2шт.
17
A51499
STUD
- intake manifold, inter. (3/8" N.C. x 4-5/16")
2шт.
18
A51500
STUD
- intake manifold, center (3/8" N.C.x 5-5/16")
1шт.
19
A39049
12 PT SCREW
BOLT - cylinder head (1/2 x 3-1/2" N.C., 12 pt. hd.)
4шт.
19
A39048
12 PT SCREW
BOLT - cylinder head (1/2 x 5-1/8" N.C., 12 pt. hd.)
11шт.
19
A39049
12 PT SCREW
BOLT - cylinder head (1/2 x 5-5/8" N.C., 12 pt. hd.)
2шт.
20
A36902
STUD
- cylinder head (1-1/2" N.C. x 5-5/8")
2шт.
21
A51271
STUD
- cylinder head (3/8" N.C. x 3-3/4")
2шт.
22
A51114
NUT
- head studs (1/2" N.C. & 3/8" N.C.)
2шт.
23
A39046
WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk
- 1/2 x 7/8 x 1/8"
19шт.
24
A142098
GROMMET
- cover (Replaces G46867)
2шт.
25
G49400
WASHER
- cover nut (3/8 x 1-1/8 x 1/8")
2шт.
26
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex
2шт.
27
A148745
CYLINDER HEAD GASKET
- cylinder head (Replaces A39279)
1шт.
30
G11946
GUIDE
KIT - exhaust valves (Set of 4)
1шт.
31
G11945
GUIDE
KIT - intake valves (Set of 4)
1шт.
32
A43048
KIT
INSERT KIT - exhaust valve seat (Set of 4)
1шт.
Выбрано товаров: 30
