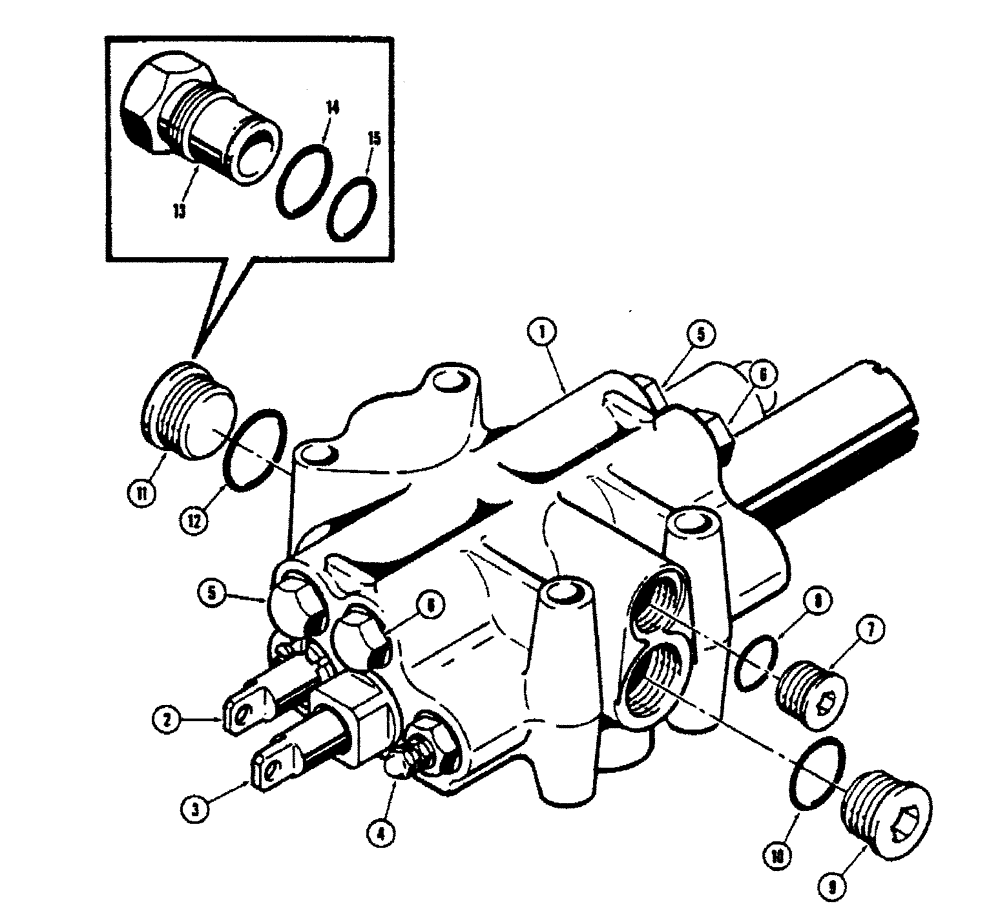

Запчасти Case 450 (222) - R30043 ANGLE DOZER OR DRAWBAR CONTROL VALVE, 2 SPOOL (07) - HYDRAULIC SYSTEM

1

R30043

VALVE

- equipment control valve, two spool, Includes: Ref. 2 - 11

1шт.

2

D37050

SPOOL

- three position, parts list Figure 242

1шт.

2

D37050

SPOOL

- three position, parts list Figure 242

1шт.

2

D37051

SPOOL

- three position, parts list Figure 242

1шт.

2

D37052

SPOOL

- three postion, parts list Figure 242

1шт.

2

D37053

SPOOL

- three position, parts list Figure 242

1шт.

3

D46024

SPOOL

- four position, parts list Figure 234

1шт.

3

D46025

SPOOL

- four position, parts list Figure 234

1шт.

3

N6592

VALVE

SPOOL - four position, parts list Figure 234

1шт.

3

D46027

SPOOL

- four postion, parts list Figure 234

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 243

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 238

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 238

2шт.

7

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 8 Hex Soc, 3/4"-16 ORB

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref. 10 Hex Soc, 1 1/16"-12 ORB

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 12 Hex Soc, 1 5/16"-12 ORB

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

D35401

FITTING

- carryover, Backhoe Model only, Includes: Ref. 14 and 15

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large

1шт.

15

A25590

O-RING,15" ID x 1 1" OD x 3/32"

- small

1шт.
