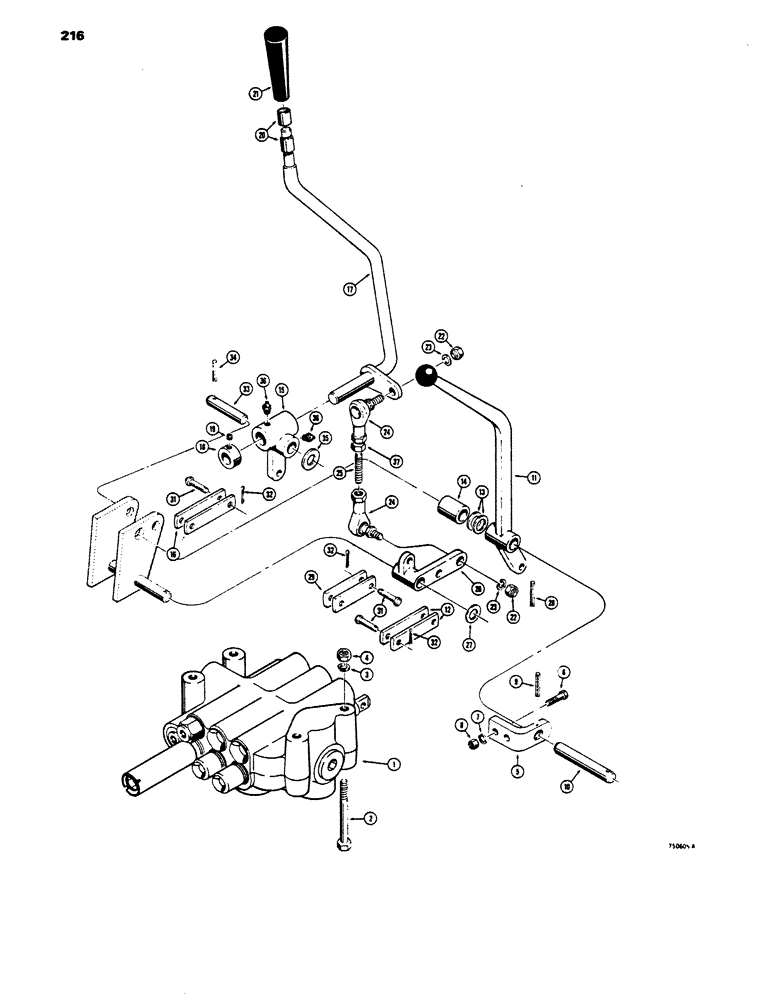

Запчасти Case 450 (216) - THREE SPOOL VALVES AND LEVERS, ALL VALVES HAVE PART NUMBER ON VALVE IDENTIFICATION PLATE (07) - HYDRAULIC SYSTEM

1

R30044

VALVE

- three spool, use on Angling Dozer Models with ripper pull behind hydraulics, parts list Figure 226 (1)

1шт.

1

R30046

VALVE

- three spool, use on Angle-Tilt Dozers and Angling Dozers with Ripper or pull hydraulics, parts list Figure 226

1шт.

1

R24135

VALVE

- three spool, used on Return-To-Dig Loader Models with ripper, pull behind hydraulics or clam type buckets, parts list Figure 224(1)

1шт.

1

R29817

VALVE - three spool, used on Return-To-Dig Loader Models with logging attachment and ripper or pull behind hydraulics, parts list Figure 228 (1)

1шт.

1

R29819

VALVE - three spool, used on Loader Models with logging attachment, ripper or pull behind hydraulics without Return-To-Dig feature, parts list Figure 228

1шт.

2

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 1-1/4"

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" x 16 NC

4шт.

5

D47216

BRACKET

- valve lever mounting

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8' - 16 NC

2шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

10

D43459

PIN

SHAFT - pivot

1шт.

11

D35395

LEVER

- valve control, R.H.

1шт.

12

D35397

LINK

- long

2шт.

13

A26411

WASHER

- special

1шт.

14

D37548

SLEEVE

SPACER - lever

1шт.

15

R45489

BRACKET

LEVER - pivot (replaces D43451)

1шт.

16

D43453

LINK

- long, used with all valves

2шт.

D43450

LEVER

- use R38663 lever, R38654 knob and (2) R38655 ring, 1/2" (13 mm) O.D. for knob

1шт.

17

R38663

LEVER

- 5/8" (15 mm) O.D. for knob

1шт.

18

D43620

COLLAR

- control lever

1шт.

19

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

20

D38862

RING - 1/2" (13 mm) I.D., D43450 lever

2шт.

20

R38655

RING

- 5/8" (15 mm) I.D., R38663 lever

2шт.

21

D37550

KNOB

- D43450 lever

1шт.

21

R38654

KNOB

- R38663 lever

1шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" - 24 NF

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

D40908

BALL JOINT

2шт.

25

D37549

STUD

BOLT - stud, 3/8" - 24 NF

1шт.

26

R30508

LEVER

- bell crank

1шт.

27

A26411

WASHER

- special

1шт.

28

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

29

D43454

LINK

- long, all valves

2шт.

31

D45388

PIN

- link, retaining

6шт.

32

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

33

D43452

PIN,12.72mm OD x 61.91mm L

- retaining, pivot lever

1шт.

34

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

35

195-2065

WASHER,33/64" x 7/8" x .049"

- spacer

1шт.

36

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, if used

2шт.

37

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.
