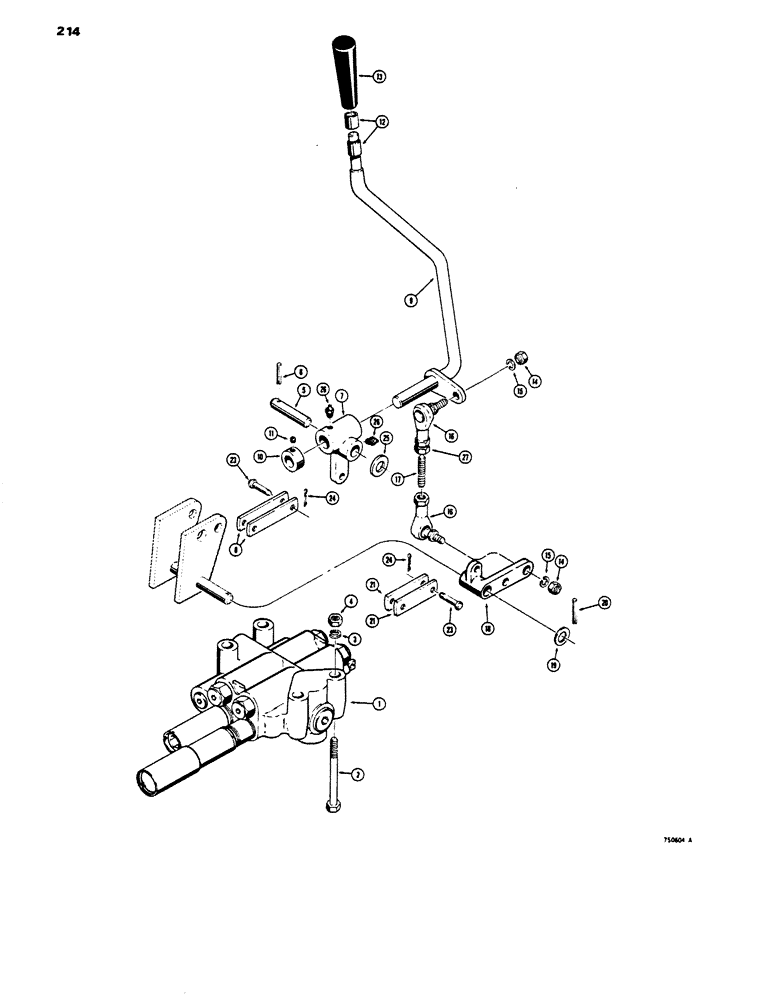

Запчасти Case 450 (214) - TWO SPOOL VALVES AND LEVERS, ALL VALVES HAVE PART NUMBER ON VALVE IDENTIFICATION PLATE (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
R30043
VALVE
- two spool, used on Angling Dozer and Drawbar Models, parts list Figure 222
1шт.
1
D45039
VALVE
- two spool, used on Loader Models without Return-To-Dig feature, parts list Figure 222
1шт.
1
R24134
VALVE
- two spool, used on Return-To-Dig Loader Models, parts list Figure 224
1шт.
2
13-668
BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5
HHCS - 3/8" - 16 NC x 4-1/4"
4шт.
3
92-6
LOCK WASHER,3/8"
4шт.
4
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
4шт.
5
D43452
PIN,12.72mm OD x 61.91mm L
- retaining, pivot lever
1шт.
6
138-61
LOCK PIN,1/8" x 1", Slotted
PIN, 1/8" x 1", Slotted
1шт.
7
D43451
LEVER
- pivot
1шт.
8
D43453
LINK
- long, use with all valves
2шт.
9
D43450
LEVER
- use R38663 lever, R38654 knob and (2) R38655 ring, 1/2" (13 mm) O.D. for knob, Includes: Ref. 10
1шт.
9
R38663
LEVER
- 5/8" (15 mm) O.D. for knob, Includes: Ref. 10
1шт.
10
D43620
COLLAR
- control lever
1шт.
11
83-54
SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt
1шт.
12
D38662
RING
- 1/2" (13 mm) I.D. D43450 lever
2шт.
12
R38655
RING
- 5/8" (15 mm) I.D., R38663 lever
2шт.
13
D37550
KNOB
- D43450 lever
1шт.
13
R38654
KNOB
- R38663 lever
1шт.
14
25-116
NUT,Hex, 3/8"-24, G5
- hex, 3/8" - 24 NF
2шт.
15
92-6
LOCK WASHER,3/8"
2шт.
16
D40908
BALL JOINT
2шт.
17
D37549
STUD
BOLT - stud, 3/8" - 24 NF
1шт.
18
R30508
LEVER
- bell crank
1шт.
19
A26411
WASHER
- special, Includes: Ref. 20
1шт.
20
138-61
LOCK PIN,1/8" x 1", Slotted
PIN, 1/8" x 1", Slotted
1шт.
21
D43454
LINK
- short, all valves
2шт.
23
D45388
PIN
- link retaining
4шт.
24
132-24
COTTER PIN,3/32" x 1/2"
PIN - cotter, 3/32" x 1"
4шт.
25
195-2065
WASHER,33/64" x 7/8" x .049"
- spacer
1шт.
26
219-4
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8" NPT, if used
2шт.
27
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex, 3/8" - 24 NF
1шт.
