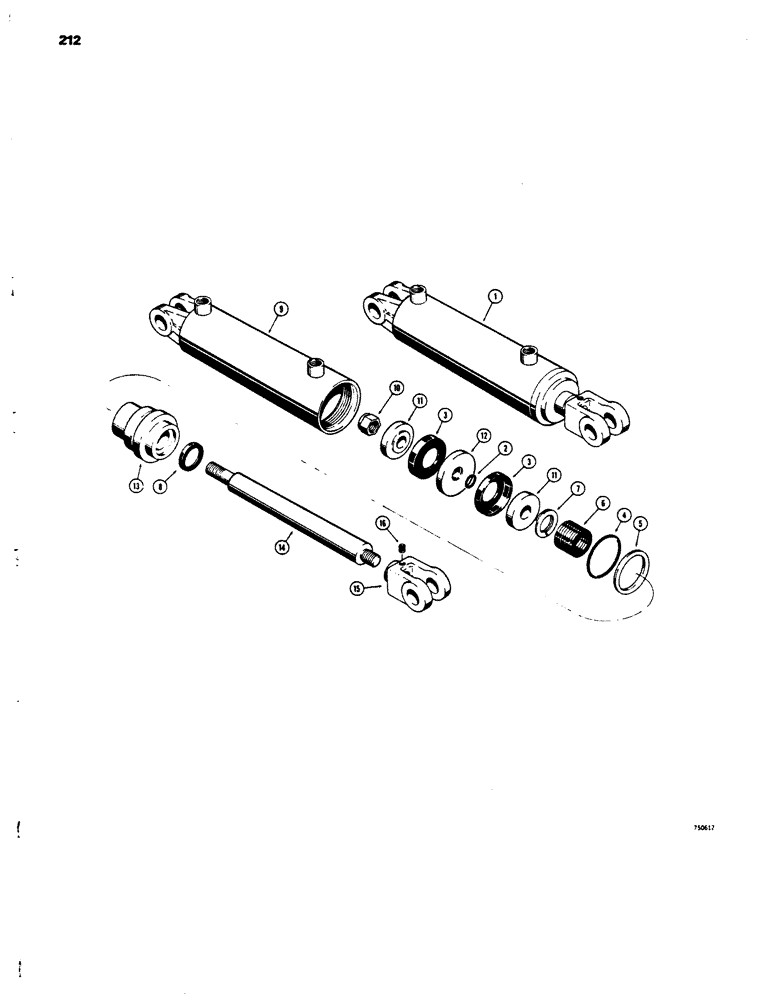

Запчасти Case 450 (212) - D39720 AITKIN GRAPPLE CYLINDER (07) - HYDRAULIC SYSTEM

1

D39720

CYLINDER - 3" (76 mm) I.D. x 8" (203 mm) stroke, Includes: Ref. 2 - 16

1шт.

D39721

KIT

- cylinder, Includes: Ref. 2 - 8

1шт.

2

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - O-ring

1шт.

3

D39728

SEAL - piston

2шт.

4

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - 0-ring

1шт.

5

D39729

WASHER - backup

1шт.

6

D39730

PACKING - rod, set of seven

1шт.

7

D40170

RING - snap

1шт.

8

D40171

SEAL - rod wiper

1шт.

9

D39722

TUBE - cylinder

1шт.

10

131-17

LOCK NUT

NUT - hex, self lock, 7/8" - 14 NF

1шт.

11

D39726

RING - retaining, piston

2шт.

12

D39725

PISTON

1шт.

13

D39723

GLAND - cylinder

1шт.

14

D39724

ROD - piston, 1-1/4" (38 mm) dia.

1шт.

15

D39727

YOKE - rod, piston

1шт.

16

D40172

SCREW - set, 5/16" - 18 NC x 1/2"

1шт.
