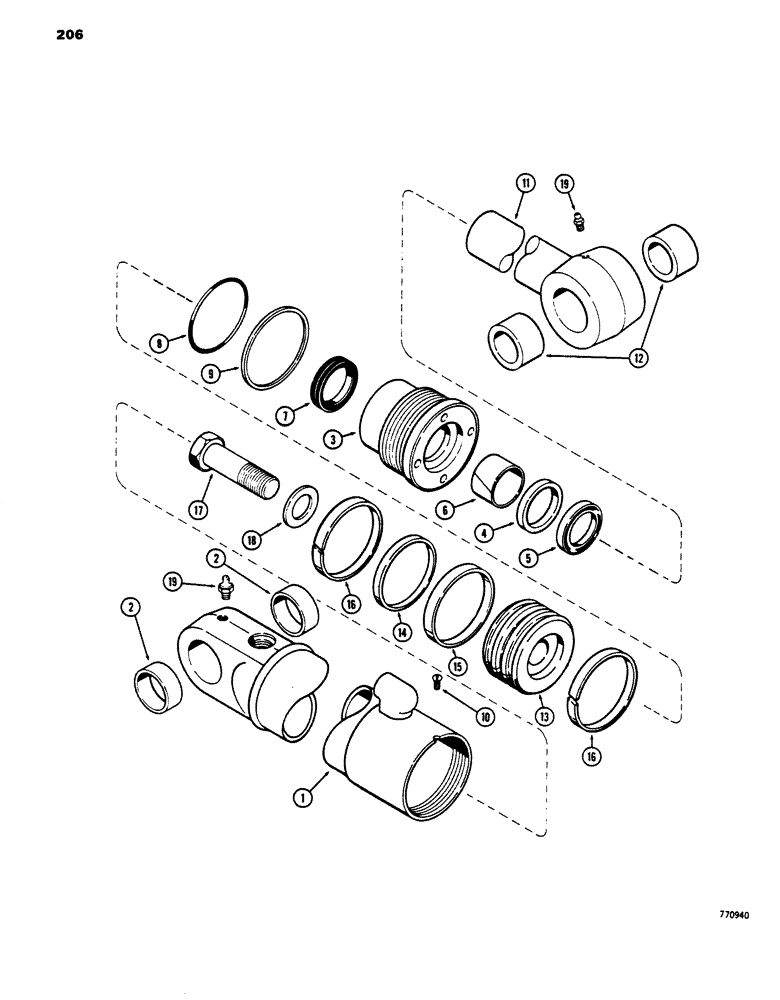

Запчасти Case 450 (206) - G101228 TILT CYLINDER - ANGLE TILT DOZER, TUBE IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

G101228

CYLINDER ASSY.

CYLINDER - 3-1/2" (89 mm) dia. x 8" (203 mm) stroke, Includes: Ref. 1 - 19

1шт.

1

G34411

TUBE,16.93" L

Includes: Ref. 2

1шт.

2

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

2шт.

G34629

GLAND

ASSEMBLY, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod

1шт.

Part of Seal Kit P/N G102402

1шт.

6

G34322

BEARING

- center

1шт.

Part of Seal Kit P/N G102402

1шт.

7

D36971

RING

SEAL - rod, P/N G100778 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G102402

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G102402

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Kit P/N G102402

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No.8 - 32 NC x 1/4"

1шт.

11

G34409

ROD ASSY.

ROD - 2" (51 mm) dia., Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- rod

2шт.

13

G100694

PISTON

1шт.

14

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

RING - quad

1шт.

Part of Seal Kit P/N G102402

1шт.

15

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- piston

1шт.

Part of Seal Kit P/N G102402

1шт.

16

100711

RING - wear

2шт.

Part of Seal Kit P/N G102402

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTNG - staight, grease, 1/8" NPT

2шт.

G102402

SEAL

KIT - seal, Includes: Ref. 5 - 9 and 14 - 16

1шт.

G100778

SEAL

- rod, service option - extreme heat or cold

1шт.
