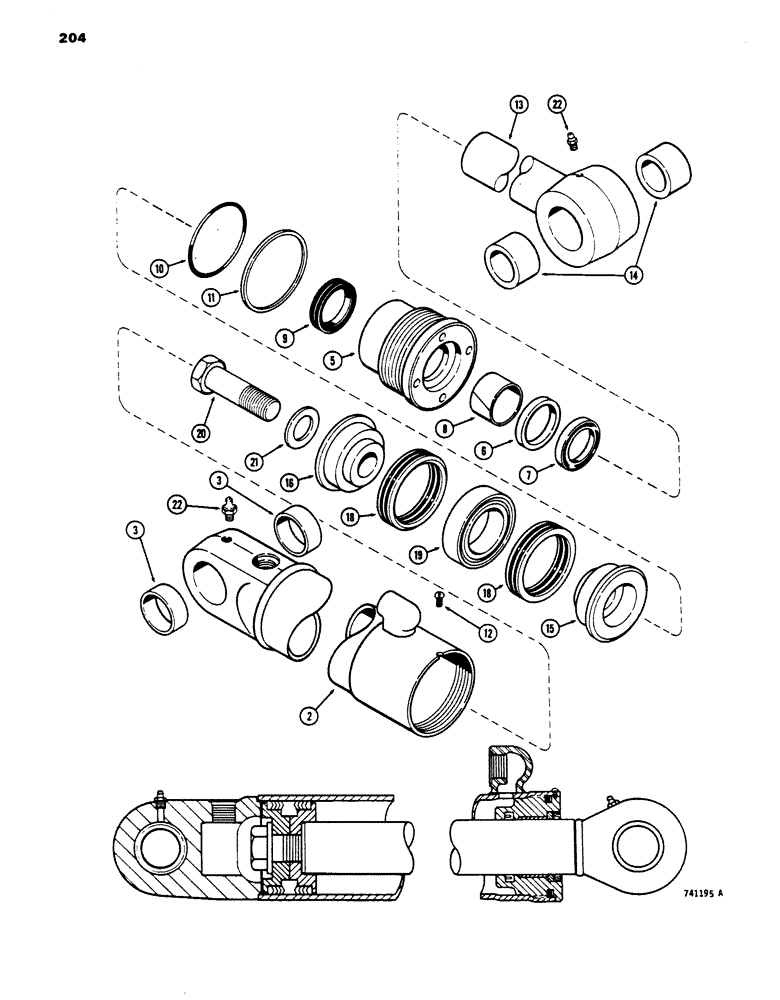

Запчасти Case 450 (204) - G34345 TILT CYLINDER - ANGLE TILT DOZER, GLAND OR TUBE IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G34345

HYDRAULIC CYLINDER

CYLINDER - 3-1/2" (89 mm) dia. x 8" (203 mm) stroke, not shown, Includes: Ref. 2 - 22

1шт.

2

G34411

TUBE,16.93" L

- cylinder, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

G34629

GLAND

ASSEMBLY, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of Seal Kit P/N G34630

1шт.

8

G34322

BEARING

- center

1шт.

Part of Seal Kit P/N G34630

1шт.

9

D36971

RING

SEAL - piston rod, P/N G100778 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G34630

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G34630

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Kit P/N G34630

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No.8 - 32 NC x 1/4"

1шт.

13

G34409

ROD ASSY.

ROD - piston, 2" (51 mm) dia., Includes: Ref. 14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

15

G33167

PISTON

- split, rod end

1шт.

16

D28367

PISTON

- split, bolt end

1шт.

G33237

PACKING

- piston, Includes: Ref. 18 and 19

1шт.

Part of Seal Kit P/N G34630

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G34630

SEAL

KIT - seal, Includes: Ref. 7 - 11 and P/N G33237

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold

1шт.
