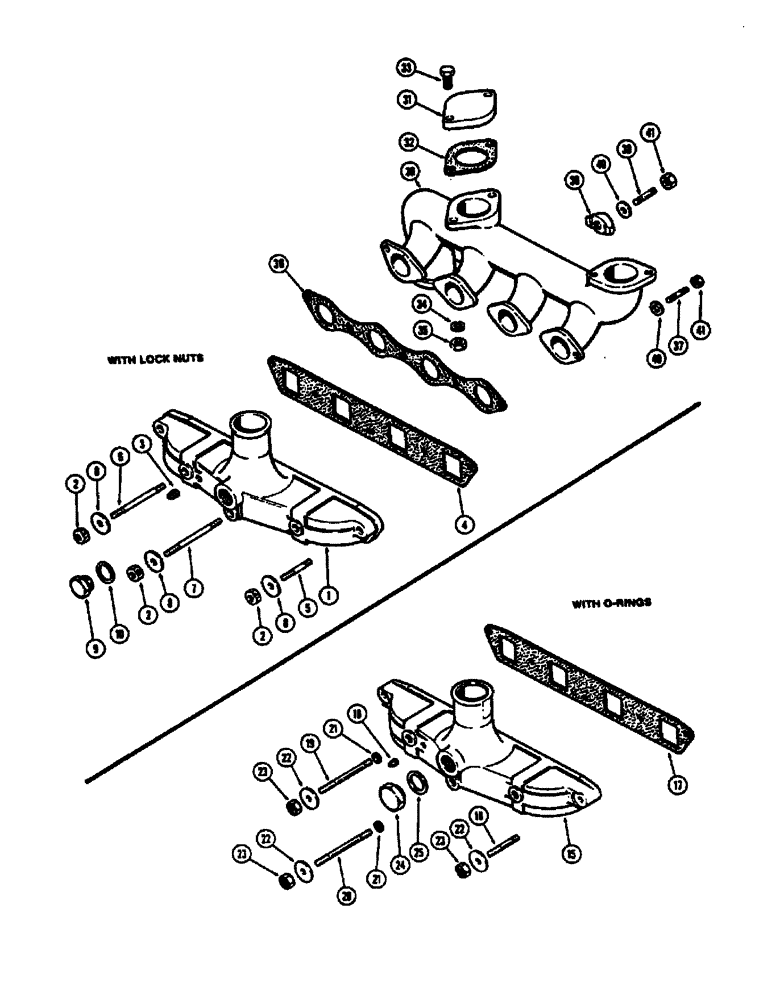

Запчасти Case 450 (012) - MANIFOLDS, 207 DIESEL ENGINE, INTAKE MANIFOLD, WITH LOCKING NUTS, 1ST USED ENG. S/N 280541 (01) - ENGINE

1

A152536

MANIFOLD

ASSY. - intake, Includes: Ref. 2 and 3

1шт.

2

131-206

NUT,3/8"-16

NUT - lock (3/8" N.C. w/nylon insert)

5шт.

3

221-11

PLUG,Sq Hd, 1/8"-27

- 1/8" P.T., sq. hd.

1шт.

4

G46871

GASKET

-, Serial Range: manifold-head

1шт.

5

A140924

STUD

- manifold, ends (3/8" N.C. x 2-7/16")

2шт.

6

A51500

STUD

- manifold, intermediate (3/8" N.C. x 4-5/16")

2шт.

7

A51500

STUD

- manifold, center (3/8 x 1 x 1/8")

5шт.

8

D41740

WASHER

- studs (3/8 x 1 x 1/8")

5шт.

9

A20916

MANIFOLD GASKET

PLUG - manifold (Heater hole)

1шт.

10

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

15

A51876

MANIFOLD

ASSY. - intake, w/ o-rings used prior to eng s/n 2880541, Includes: Ref. 16

1шт.

16

221-11

PLUG,Sq Hd, 1/8"-27

-1/8" P.T., sq. hd., w/ o-rings used prior to eng s/n 2880541

1шт.

17

G46871

GASKET

- manifold to head, w/ o-rings used prior to eng s/n 2880541

1шт.

18

A140924

STUD

- manifold, ends (3/8" N.C. x 2-7/16") (Rpl. A35175), w/ o-rings used prior to eng s/n 2880541

2шт.

19

A51499

STUD

- manifold, intermediate (3/8 x 9/16 x 3/32"), w/ o-rings used prior to eng s/n 2880541

3шт.

20

A51500

STUD

- manifold, center (3/8" N.C. x 5-5/16"), w/ o-rings used prior to eng s/n 2880541

1шт.

21

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- center & inter. studs (3/8 x 9/16 x 3/32"), w/ o-rings used prior to eng s/n 2880541

3шт.

22

D41740

WASHER

- studs (3/8 x 1 x 1/8"), w/ o-rings used prior to eng s/n 2880541

5шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex, w/ o-rings used prior to eng s/n 2880541

5шт.

24

A20917

PLUG

- manifold (heater hole), w/ o-rings used prior to eng s/n 2880541

1шт.

25

A20916

MANIFOLD GASKET

GASKET - plug, w/ o-rings used prior to eng s/n 2880541

1шт.

30

A39233

MANIFOLD

ASSY.- exhaust, Includes: Ref. 31 - 35

1шт.

31

A38188

PLATE

- cover, exhaust manifold

2шт.

32

G46853

MANIFOLD GASKET

- cover plate, exhaust manifold

2шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover plate, exhaust manifold Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

34

195-25

WASHER,3/8"

- lock, exhaust manifold 3/8"

4шт.

35

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez-Pruf, exhaust manifold

4шт.

36

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

37

A29431

STUD

- manifold, ends (3/8" N.C. x 1-3/4), exhaust

2шт.

38

A39129

STUD

- manifold, clamps (3/8" N.C. x 2-1/16"), exhaust

3шт.

39

A35028

CLAMP

- manifold, exhaust

3шт.

40

195-25

WASHER,3/8"

- x 13/16 x 1/16", exhaust manifold 3/8"

5шт.

41

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez-Pruf, exhaust manifold

5шт.
