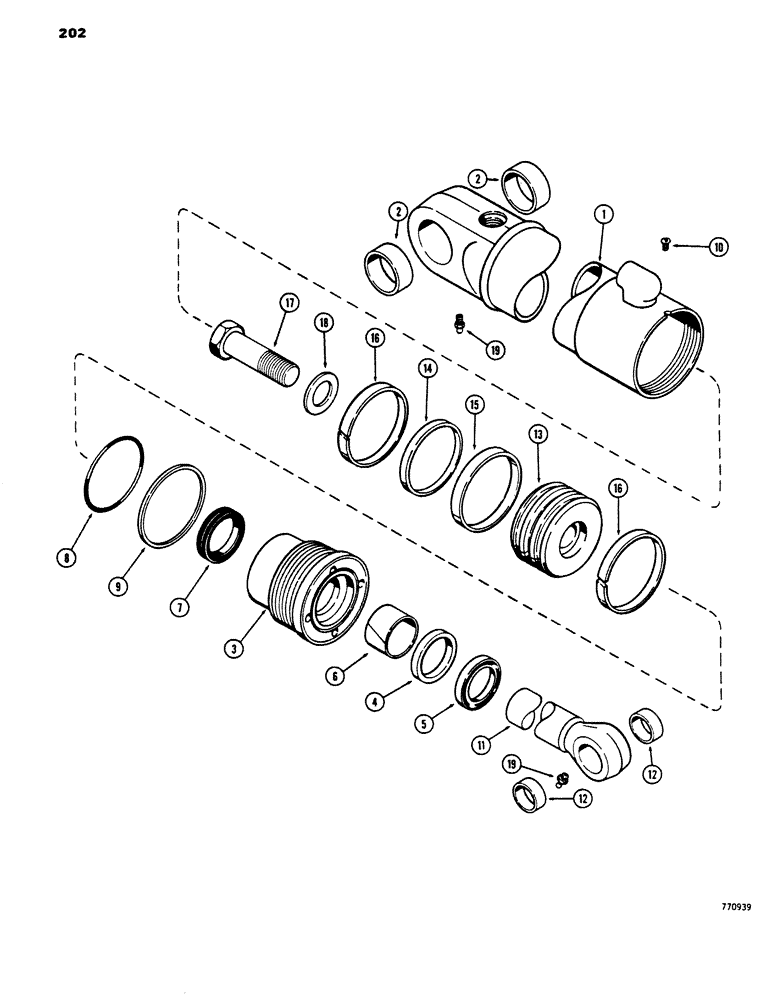

Запчасти Case 450 (202) - G101232 ANGLE CYLINDER - ANGLE TILT DOZER, TUBE IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

G101232

CYLINDER BLOCK

CYLINDER - angling, 4" (102 mm) dia. x 8-5/16" (211 mm) stroke, Includes: Ref. 1 - 18

1шт.

1

G34402

TUBE

Includes: Ref. 2

1шт.

2

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

G34331

GLAND

ASSEMBLY, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod

1шт.

Part of Seal Kit P/N G102401

1шт.

6

G34322

BEARING

- center

1шт.

Part of Seal Kit P/N G102401

1шт.

7

D36971

RING

SEAL - piston rod, P/N G100778 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G102401

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G102401

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Kit P/N G102401

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

11

G34405

ROD ASSY.

ROD - 2" (51 mm) dia., Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- rod

2шт.

13

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

(replaces G102285)

1шт.

14

G100439

SEAL,98mm ID x 102.6mm OD x 6.8mm Thk

RING - quad

1шт.

Part of Seal Kit P/N G102401

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- piston

1шт.

Part of Seal Kit P/N G102401

1шт.

16

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of Seal Kit P/N G102401

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

18

G32351

WASHER

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease, 1/8" NPT

2шт.

G102401

SEAL

KIT - seal, Includes: Ref. 5 - 9 and 14 - 16

1шт.

G100778

SEAL

- rod, service option - extreme heat or cold

1шт.
