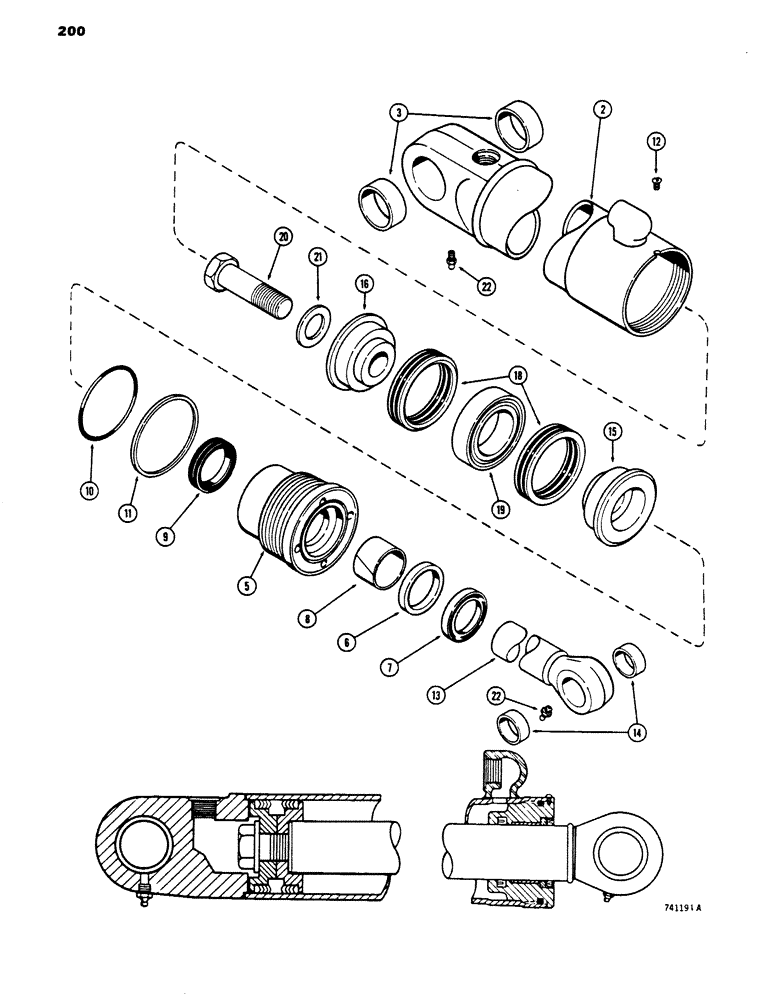

Запчасти Case 450 (200) - G34343 ANGLE CYLINDER - ANGLE TILT DOZER, GLAND OR TUBE IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G34343

HYDRAULIC CYLINDER

CYLINDER - angling, 4" (102 mm) dia. x 8-5/16" (211 mm) stroke, not shown, Includes: Ref. 2 - 22

1шт.

2

G34402

TUBE

- cylinder body, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

G34331

GLAND

ASSEMBLY, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of Seal Kit P/N G34647

1шт.

8

G34322

BEARING

- center

1шт.

Part of Seal Kit P/N G34647

1шт.

9

D36971

RING

SEAL - piston rod, P/N G100778 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G34647

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G34647

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Kit P/N G34647

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No.8 - 32 NC x 1/4"

1шт.

13

G34405

ROD ASSY.

ROD - piston, 2" (51 mm) dia., Includes: Ref. 14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

15

G33159

PISTON

- split, rod end

1шт.

16

D28370

PISTON

- split, bolt end

1шт.

G33239

PACKING

- piston, Includes: Ref. 18 and 19

1шт.

Part of Seal Kit P/N G34647

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

21

G32351

WASHER

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, staight, 1/8" NPT

2шт.

G34647

SEAL

KIT - seal, Includes: Ref. 7 - 11 and P/N G33239

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold

1шт.
