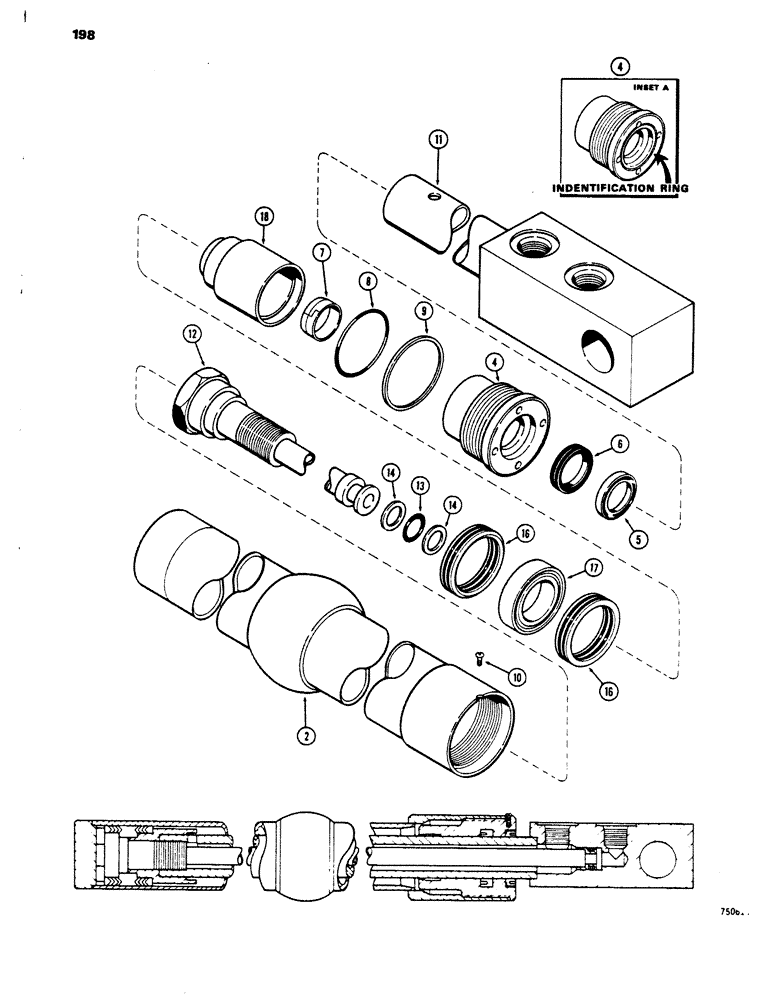

Запчасти Case 450 (198) - G33764 ANGLE CYLINDER - ANGLE DOZER, GLAND HAS (07) - HYDRAULIC SYSTEM

1

G33764

CYLINDER BLOCK

CYLINDER - angling, 2" (51 mm) dia. x 36-1/2" (917 mm) stroke, not shown, Includes: Ref. 2 - 18

1шт.

2

D34671

TUBE

- cylinder body

1шт.

G33487

GLAND

ASSEMBLY, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - see inset A

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G32459

1шт.

6

D36969

CUP

SEAL - piston, P/N G100776 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G32459

1шт.

7

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of Seal Kit P/N G32459

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G32459

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Kit P/N G32459

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

11

G33766

ROD

- piston, 1-1/2" (38 mm) dia.

1шт.

12

D34385

TUBE

- piston rod, inner

1шт.

13

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-ring

1шт.

Part of Seal Kit P/N G32459

1шт.

14

D34938

BACK-UP RING,0.827" OD

- back-up

2шт.

Part of Seal Kit P/N G32459

1шт.

G33201

PACKING

- piston, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

G33765

BUSHING

PISTON - front half

1шт.

REFERENCE

SPARE PART

- seal, Includes: Ref. 5 - 9 and 13 - 14

1шт.

G100776

SEAL

- piston rod, service option - extreme heat or cold

1шт.
