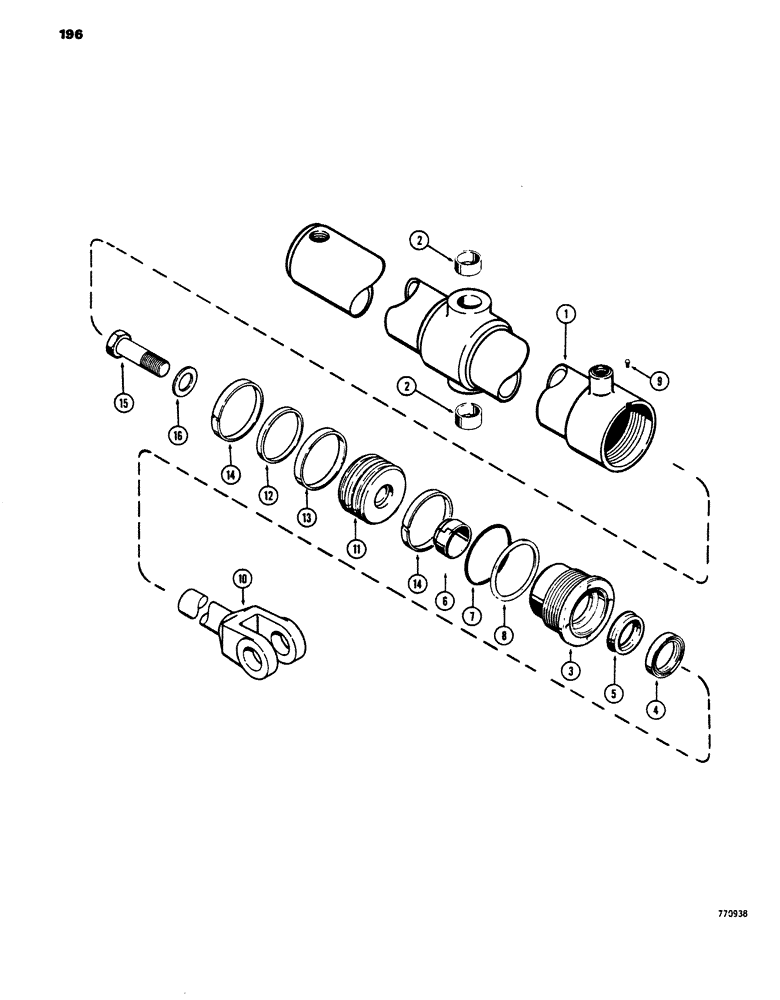

Запчасти Case 450 (196) - G101229 LIFT CYLINDER - ANGLE TILT DOZER, TUBE IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

G101229

CYLINDER

- 2-1/2" (64 mm) dia. x 28" (711 mm) stroke, Includes: Ref. 1 - 16

2шт.

1

G34346

CYLINDER ASSY.,2.5" ID x 35" L

TUBE, Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

G33578

GLAND

ASSEMBLY, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

D95141

WIPER SEAL

WIPER - outer

1шт.

Part of Seal Kit P/N G102407

1шт.

5

36968

PRESSURE PIPE

SEAL - rod, P/N G100775 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G102407

1шт.

6

D27705

WIPER

- inner

1шт.

Part of Seal Kit P/N G102407

1шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G102407

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Kit P/N G102407

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No.8 - 32 NC x 1/4"

1шт.

10

G34348

ROD

- 1-1/4" (31 mm) dia.

1шт.

11

G100708

PISTON

1шт.

12

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

RING - quad

1шт.

Part of Seal Kit P/N G102407

1шт.

13

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING - piston

1шт.

Part of Seal Kit P/N G102407

1шт.

14

G100714

RING

- wear

2шт.

Part of Seal Kit P/N G102407

1шт.

15

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NC x 2-1/2", grade 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G102407

SEAL

KIT - seal, Includes: Ref. 4 - 8 and 12 - 14

1шт.

G100775

SEAL

- rod, service option - extreme heat or cold

1шт.
