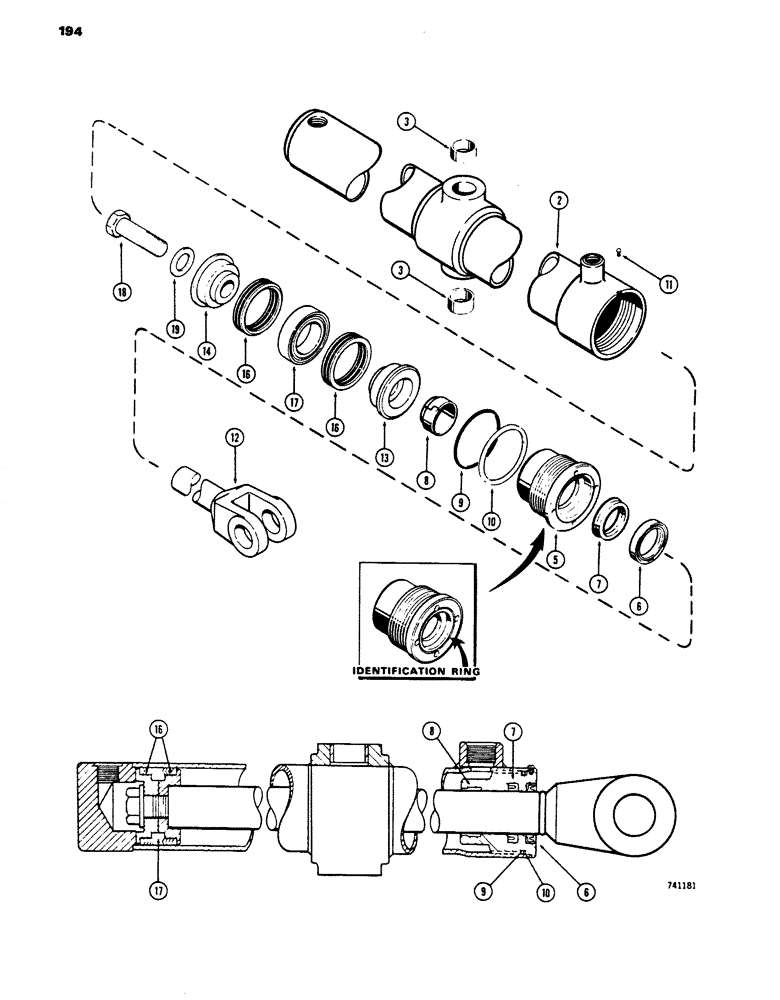

Запчасти Case 450 (194) - G34344 LIFT CYLINDER - ANGLE TILT DOZER, GLAND HAS I.D. RING OR TUBE IS STAMPED W/CYL. PART NUMBER (07) - HYDRAULIC SYSTEM

1

G34344

CYLINDER

- lift, 2-1/2" (64 mm) dia. x (711 mm) stroke, not shown, Includes: Ref. 2 - 19

2шт.

2

G34346

CYLINDER ASSY.,2.5" ID x 35" L

TUBE - cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

5

G33578

GLAND

ASSEMBLY, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G32295

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, P/N G100775 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G32295

1шт.

8

D27705

WIPER

- piston rod, inner

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G32295

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- back- up

1шт.

Part of Seal Kit P/N G32295

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No.8 - 32 NC x 1/4"

1шт.

12

G34348

ROD

- piston, 1-1/4" (21 mm) dia.

1шт.

13

G33347

PISTON ASSY.

PISTON - split, rod end

1шт.

14

D28364

PISTON

- split, bolt end

1шт.

16

G33193

PACKING

- piston, Includes: Ref. 16 and 17

1шт.

Part of Seal Kit P/N G32295

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NC x 2-1/2", grade 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G32295

GASKET KIT

KIT - seal, Includes: Ref. 6 - 7, 9 - 10 and P/N G33193

1шт.

G100775

SEAL

- piston rod, service option - extreme heat or cold

1шт.
