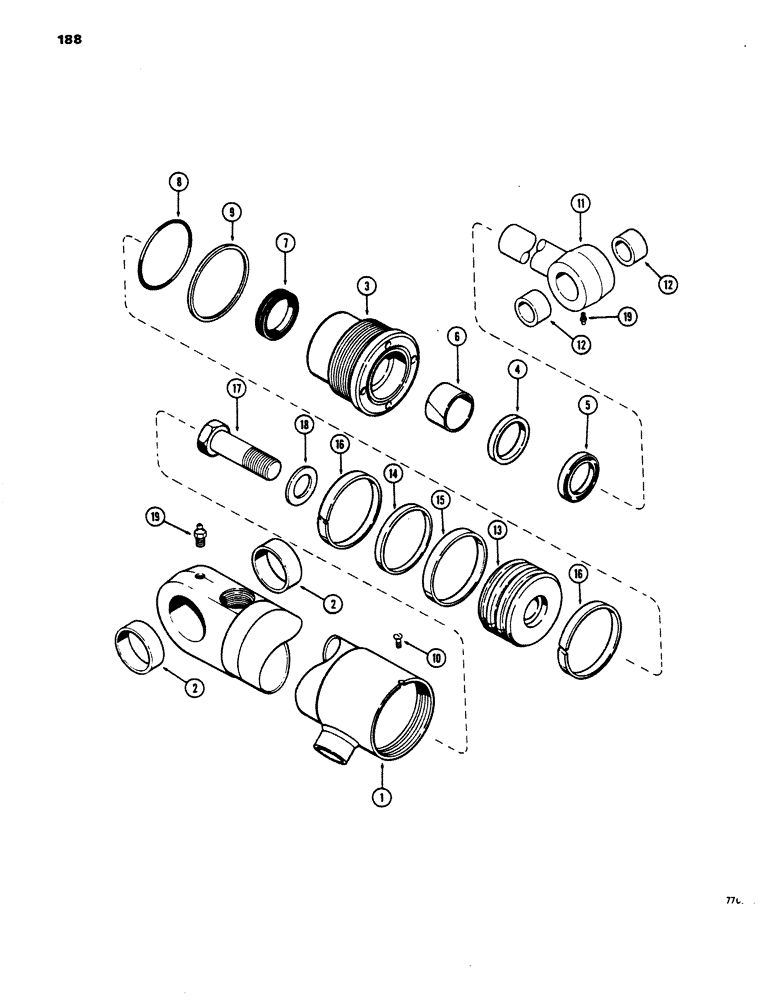

Запчасти Case 450 (188) - G101226 AND G101227 CLAM CYLINDERS, TUBE IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

G101226

CYLINDER ASSY.

CYLINDER - R.H., 3" (76 mm) dia. x 10-1/2" (267 mm) stroke, Includes: Ref. 1 - 18

1шт.

G101227

CYLINDER ASSY.

CYLINDER - L.H., 3" (76 mm) dia. x 10-1/2" (267 mm) stroke, Includes: Ref. 1 - 18

1шт.

1

D46911

CYLINDER

TUBE - G101226 cylinder (replaces D36911), Includes: Ref. 2

1шт.

1

D46910

TUBE

- G101227 cylinder, Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

G34328

GLAND

ASSEMBLY, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod

1шт.

Part of Seal Kit P/N G102404

1шт.

6

G34302

BEARING

- center

1шт.

Part of Seal Kit P/N G102404

1шт.

7

D36969

CUP

SEAL - rod, P/N G100776 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G102404

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G102404

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Kit P/N G102404

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

11

G33467

ROD

- 1-1/2" (38 mm) dia., Includes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

13

G100442

PISTON

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

RING - quad

1шт.

Part of Seal Kit P/N G102404

1шт.

15

G10444

X

RING - piston

1шт.

Part of Seal Kit P/N G102404

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of Seal Kit P/N G102404

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease, 1/8" NPT

2шт.

G102404

SEAL

KIT - seal, Includes: Ref. 5 - 9 and 14 - 16

1шт.

G100776

SEAL

- rod, service option - extreme heat or cold

1шт.
