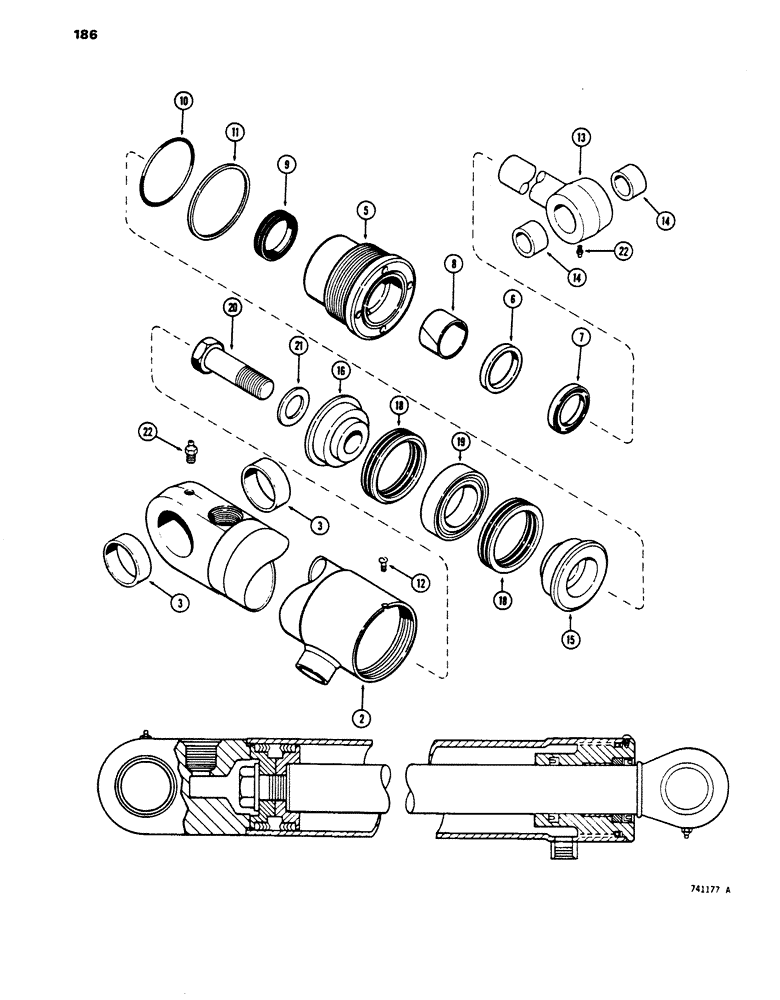

Запчасти Case 450 (186) - G33770 AND G33771 CLAM CYLINDERS, GLAND OR TUBE IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
G33770
HYDRAULIC CYLINDER
CYLINDER - R.H., 3" (76 mm) dia. x 10-1/2" (267 mm) stroke, not shown, Includes: Ref. 2 - 22
1шт.
1
G33771
CYLINDER BLOCK
CYLINDER - L.H., 3" (76 mm) dia. x 10-1/2" (267 mm) stroke, not shown, Includes: Ref. 2 - 22
1шт.
2
D46911
CYLINDER
TUBE - G33770 cylinder (replaces D36911), Includes: Ref. 3
1шт.
2
D46910
TUBE
- G33771 cylinder, Includes: Ref. 3
1шт.
3
30634
BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L
- tube
2шт.
G34328
GLAND
ASSEMBLY, Includes: Ref. 5 - 11
1шт.
5
NSS
NOT SOLD SEPARAT
GLAND
1шт.
6
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
7
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
WIPER - piston rod, outer
1шт.
Part of Seal Kit P/N G34332
1шт.
8
G34302
BEARING
- center
1шт.
Part of Seal Kit P/N G34332
1шт.
9
36969
HOSE
SEAL - piston rod, P/N G100776 can be used for extreme heat or cold
1шт.
Part of Seal Kit P/N G34332
1шт.
10
30095
O-RING
1шт.
Part of Seal Kit P/N G34332
1шт.
11
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
- back-up
1шт.
Part of Seal Kit P/N G34332
1шт.
12
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self tapping, No.8 - 32 NC x 1/4"
1шт.
13
G33467
ROD
- piston, 1-1/2" (38 mm) dia., Includes: Ref. 14
1шт.
14
30634
BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L
- piston rod
2шт.
15
G33150
PISTON
- split, rod end
1шт.
16
D28366
PISTON
- split, bolt end
1шт.
17
NSS
NOT SOLD SEPARAT
RESERVED - piston
1шт.
G33151
PACKING
- piston, Includes: Ref. 18 and 19
1шт.
Part of Seal Kit P/N G34332
1шт.
18
NSS
NOT SOLD SEPARAT
PACKING - "V" type
2шт.
19
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
20
28-1240
BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8
HHCS - 3/4" - 16 NF x 2-1/2", grade 8
1шт.
21
G32317
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- hardened
1шт.
22
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight, grease, 1/8" NPT
2шт.
G34332
SEAL
KIT - seal, Includes: Ref. 7 - 11 and P/N G33151
1шт.
G100776
SEAL
- piston rod, service option - extreme hear or cold
1шт.
Выбрано товаров: 33
