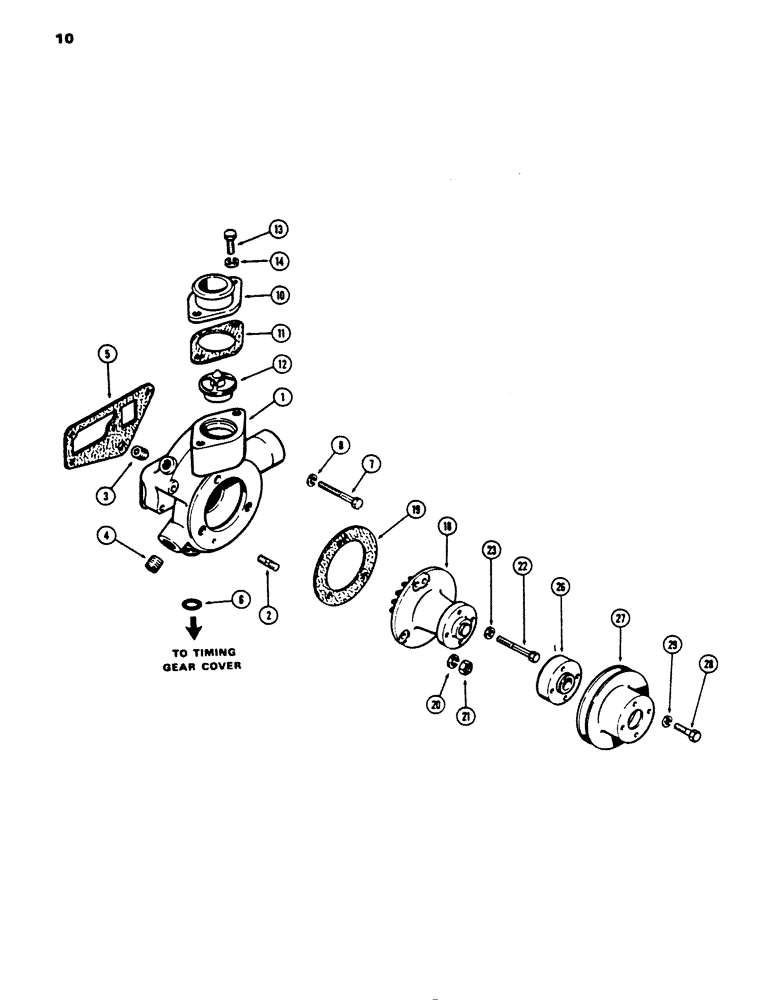

Запчасти Case 450 (010) - WATER PUMP, 207 DIESEL ENGINE (01) - ENGINE

1

A152801

BODY

ASSY. - water pump (Rpl. A51735 & A144054), Includes: Ref. 2 - 4

1шт.

2

A29433

STUD

- water pump (3/8" N.C. x 1")

2шт.

3

211-843

PLUG - body (3/8" P.T., sckt. hd.)

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- body (1/2" P.T., sckt. hd.)

1шт.

5

A38084

GASKET,1.27mm Thk

- body to cylinder head

1шт.

6

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- body to cover (3/4 x 1/8")

1шт.

7

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- body to cyl. head (3/8" x 1 x 1/8"

1шт.

7

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- body to cyl. head (3/8" x 1-7/8" N.C. hex.)

1шт.

7

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- body to cyl. head (3/8 x 3" N.C. hex.)

1шт.

8

92-6

LOCK WASHER,3/8"

3шт.

10

G-2144

HOUSING - thermostat & water outlet

1шт.

11

G46907

GASKET

-, Serial Range: housing-body

1шт.

12

A57641

THERMOSTAT

- (180deg.)

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Housing Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

3шт.

18

A146584

PUMP, WATER

PUMP ASSY.- water (Replaces A39074), Includes: Ref. 19

1шт.

18

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

18

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assy

1шт.

18

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

19

A38083

GASKET

-, Serial Range: pump-body

1шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- 3/8"N.C. HEX

2шт.

22

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- pump to body (3/8 x 2-3/4" N.C. hex)

1шт.

23

A22317

WASHER

- 3/8 x 11/16 x 1/16"

1шт.

26

A37191

BUSHING

SPACER - fan hub

1шт.

27

G11339

PULLEY

- fan drive

1шт.

28

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- pulley & spacer (5/16 x 1-1/4" N.C. hex.)

4шт.

29

92-5

LOCK WASHER,5/16"

4шт.
