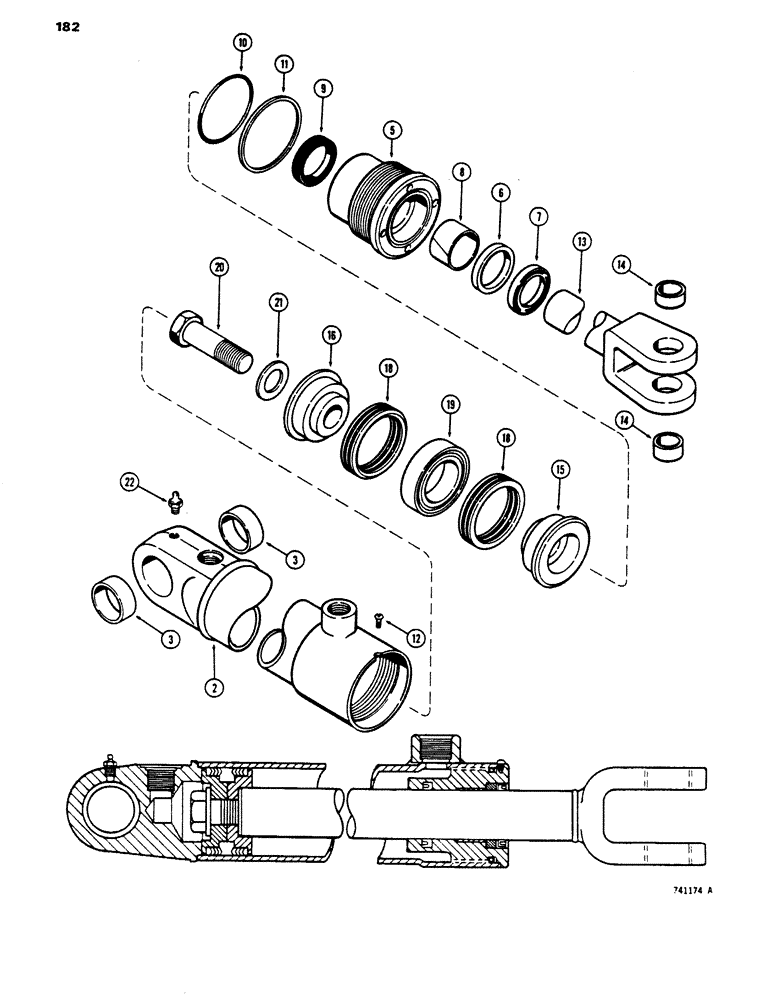

Запчасти Case 450 (182) - G33555 LOADER HYDRA-LEVELING CYLINDER, GLAND OR TUBE IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G33555

CYLINDER

- 3" (76 mm) dia. x 7-1/4" (184 mm) stroke, not shown, Includes: Ref. 2 - 22

2шт.

2

D35129

CYLINDER

TUBE - G33555 cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

4

G34633

GLAND

ASSEMBLY, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

G34600

RING

- center bearing

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G34642

1шт.

8

PG34621

WASHER

BEARING - center

1шт.

Part of Seal Kit P/N G34642

1шт.

9

D36970

CUP

SEAL - piston rod, P/N G100777 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G34642

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G34642

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Kit P/N G34642

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

13

G33556

ROD

ASSEMBLY - piston, 1-3/4" (37 mm) dia., Includes: Ref. 14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

15

G33331

PISTON

- split rod end

1шт.

16

D28896

PISTON

- split bolt end

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref. 18 and 19

1шт.

Part of Seal Kit P/N G34642

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 NPT

1шт.

G34642

SEAL

KIT - seal, Includes: Ref. 7 - 11 and P/N G33151

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - extreme heat or cold

1шт.
