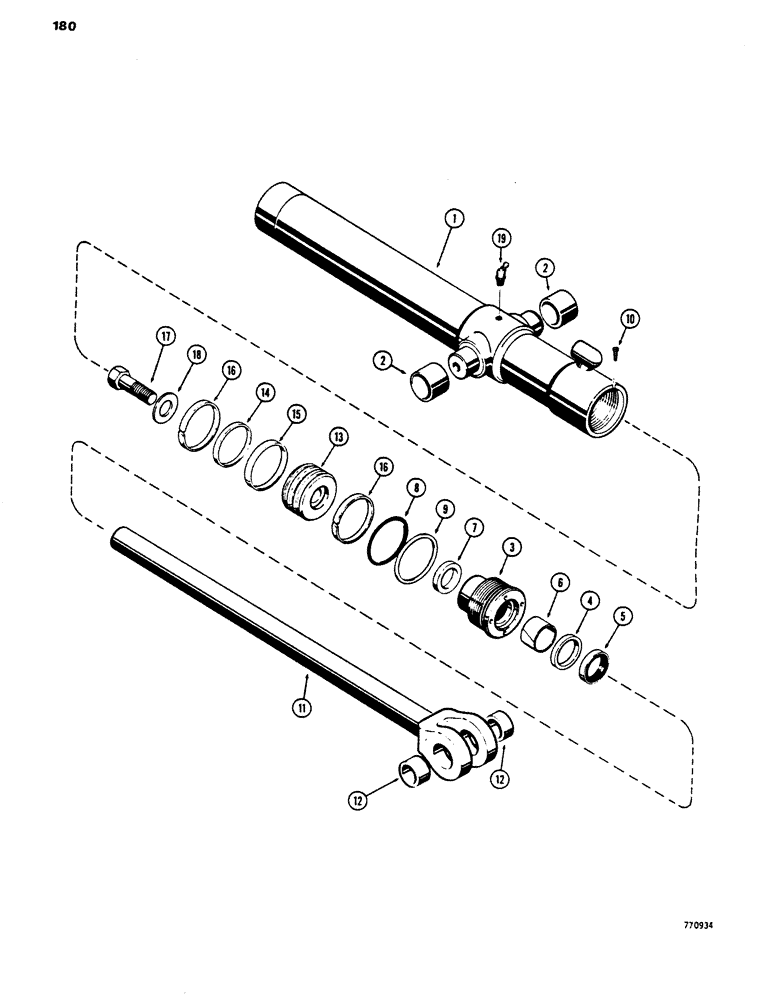

Запчасти Case 450 (180) - G101220 AND G101221 LOADER DUMP CYLINDERS, TUBE IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

G101220

CYLINDER ASSY.

CYLINDER - R.H., 3" (76 mm) dia. x 23-1/2" (597 mm) stroke, Includes: Ref. 1 - 19

1шт.

G101221

CYLINDER

- L.H., 3" (76 mm) dia. x 23-1/2" (597 mm) stroke, Includes: Ref. 1 - 19

1шт.

1

D35103

TUBE

- G101221 cylinder, Includes: Ref. 2

1шт.

1

D35102

TUBE

- G101220 cylinder, Includes: Ref. 2

1шт.

2

D31511

BUSHING

-all tubes

2шт.

G34633

GLAND

ASSEMBLY, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod

1шт.

Part of Seal Kit P/N G102405

1шт.

6

G34621

BUSHING

BEARING - center

1шт.

Part of Seal Kit P/N G102405

1шт.

7

D36970

CUP

SEAL - rod, P/N G100777 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G102405

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G102405

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Kit P/N G102405

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No.8 - 32 NC x 1/4"

1шт.

11

G33563

ROD

- 1-3/4" (37 mm) dia., Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

2шт.

13

G100704

PISTON

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

RING - quad

1шт.

Part of Seal Kit P/N G102405

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - piston

1шт.

Part of Seal Kit P/N G102405

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of Seal Kit P/N G102405

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 deg. grease, 1/8" NPT

1шт.

G102405

SEAL

KIT - seal, Includes: Ref. 5 - 9 and 14 - 16

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - extreme heat or cold

1шт.
