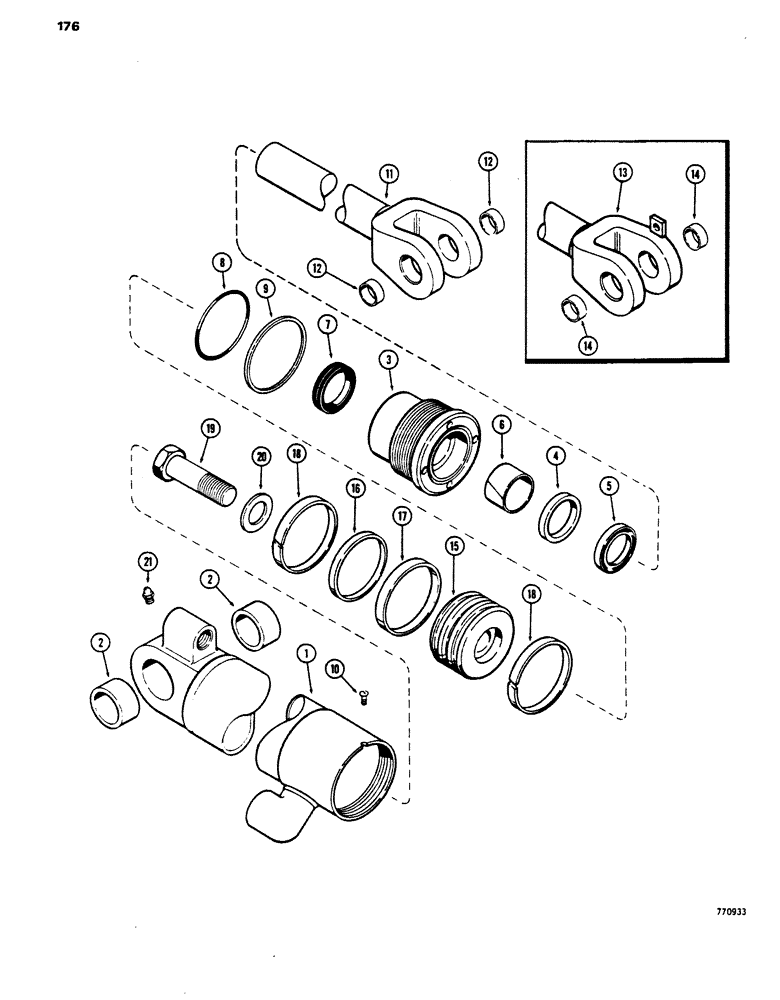

Запчасти Case 450 (176) - G101233, G101224 LOADER LIFT CYLINDERS, TUBE IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

G101223

CYLINDER

- L.H., 3-1/2" (88 mm) dia. x 31" (838 mm) stroke, Includes: Ref. 1 - 21

1шт.

G101224

CYLINDER

- R.H., 3-1/2" (88 mm) dia x 31" (838 mm) stroke, Includes: Ref. 1 - 21

1шт.

1

D35064

TUBE

- G101224 cylinder, Includes: Ref. 2

1шт.

1

D35063

TUBE

- G101223 cylinder, Includes: Ref. 2

1шт.

2

D35071

BUSHING

- all tubes

2шт.

G34629

GLAND

ASSEMBLY, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of Seal Kit P/N G102402

1шт.

6

G34322

BEARING

- center

1шт.

Part of Seal Kit P/N G102402

1шт.

7

D36971

RING

SEAL - rod, P/N G100778 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G102402

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G102402

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Kit P/N G102402

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

11

G33604

ROD

- 2" (51 mm) dia., G101233 cylinder, Includes: Ref. 12

1шт.

12

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

13

G101985

ROD

- 2" (51 mm) dia., G101224 cylinder, Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

15

G100694

PISTON

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

RING - quad

1шт.

Part of Seal Kit P/N G102402

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- piston

1шт.

Part of Seal Kit P/N G102402

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Seal Kit P/N G102402

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G102402

SEAL

KIT - seal, Includes: Refs. 5 - 9 and 16 - 18

1шт.

G100778

SEAL

- rod, service option - extreme heat or cold

1шт.
