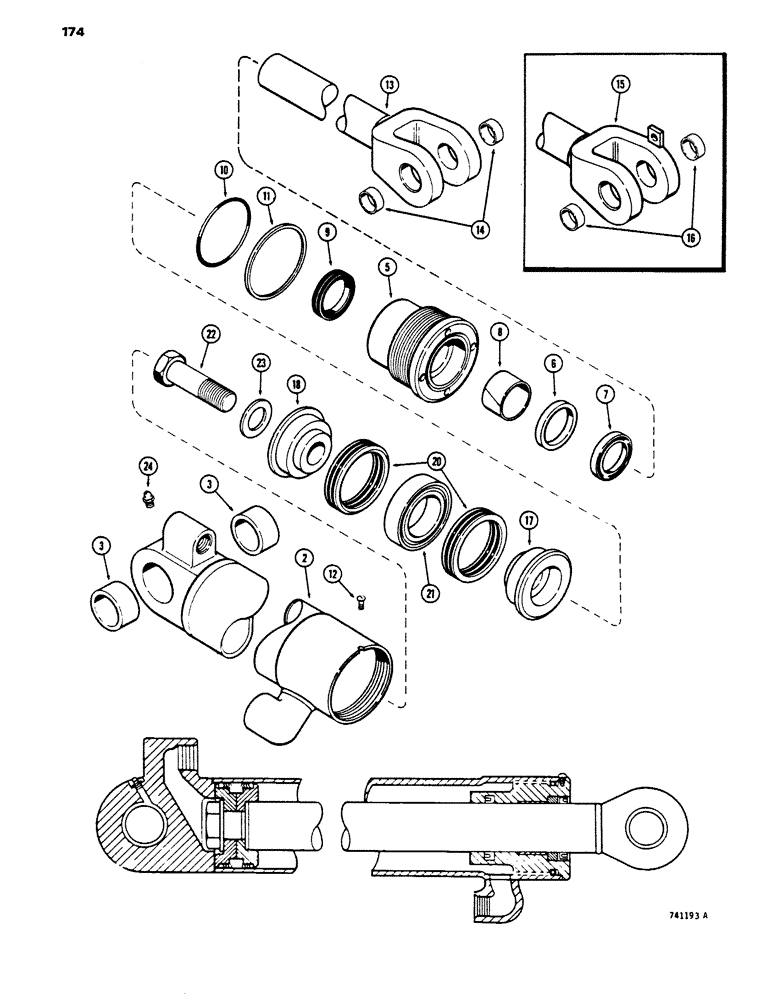

Запчасти Case 450 (174) - G33599, G33602 AND G33603 LOADER LIFT CYLINDERS, GLAND OR TUBE IS STAMPED WITH CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G33603

CYLINDER

- L.H., 3-1/2" (88 mm) dia. x 31" (838 mm) stroke, Not shown, Includes: Ref. 2 - 24

1шт.

1

G33602

CYLINDER

- R.H., 3-1/2" (88 mm) dia. x 31" (838 mm) stroke, Models without anti-rollback feature (Not shown), Includes: Ref. 2 - 24

1шт.

1

G33599

CYLINDER

- R.H., 3-1/2" (88 mm) dia. x 31" (838 mm) stroke, Models with anti-rollback feature (Not shown), Includes: Ref. 2 - 24

1шт.

2

D35064

TUBE

- G33602 and G33599 cylinder, Includes: Ref. 3

1шт.

2

D35063

TUBE

- G33603 cylinder, Includes: Ref. 3

1шт.

3

D35071

BUSHING

- tube

2шт.

G34629

GLAND

ASSEMBLY, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

95144

BALL BEARING

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G34630

1шт.

8

G34322

BEARING

- center

1шт.

Part of Seal Kit P/N G34630

1шт.

9

D36971

RING

SEAL - piston rod, P/N G100778 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G34630

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G34630

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Kit P/N G34630

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

13

G33604

ROD

- piston, 2" (51 mm) dia. G33602 and G33603 cylinders, Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

15

G33600

ROD

- piston, 2" (51 mm) dia. G33599 cylinder, Includes: Ref. 16

1шт.

16

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

17

G33167

PISTON

- split, rod end

1шт.

18

D28367

PISTON

- split, bolt end

1шт.

G33237

PACKING

ASSEMBLY - piston, Includes: Ref. 20 and 21

1шт.

Part of Seal Kit P/N G34630

1шт.

20

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

21

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

22

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

23

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 NPT

1шт.

G34630

SEAL

KIT - seal, Includes: Refs. 7 - 11 and P/N G33237

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold

1шт.
