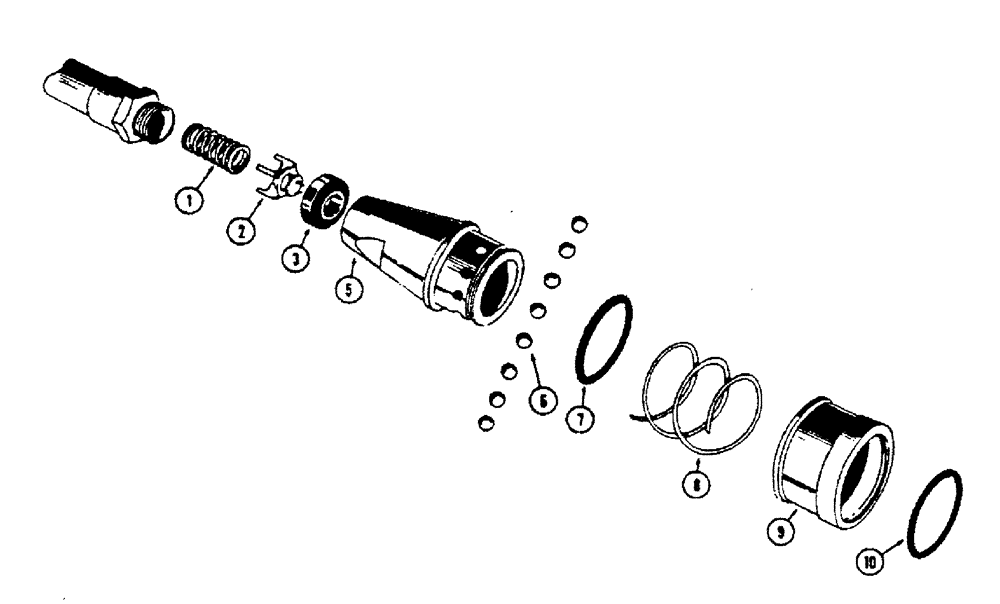

Запчасти Case 450 (170) - A28542 COUPLING - FEMALE (07) - HYDRAULIC SYSTEM

A28542

COUPLING, QUICK, FEM

COUPLING - pull-behind, female, service kit parts on figure 170(2), Includes: Ref. 1 - 10

2шт.

1

A11324

SPRING

- coupling piston

1шт.

2

A26215

PISTON

- socket

1шт.

3

A33964

SEAL

- piston

1шт.

5

A27349

BODY

- female coupling

1шт.

6

211-7

BALL,1/4" Dia

- steel, socket locking 1/4" Dia

8шт.

7

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- socket body

1шт.

8

A27354

SPRING

- ball retaining sleeve

1шт.

9

A27353

SLEEVE

SLEEVE - ball retaining

1шт.

10

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - retaining, socket

1шт.

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- connecting, case hydraulic hose to 1/2" female pipe connection (1/2" male pipe x 7/8" - 18 NF female)

1шт.

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- connecting, case pull behind couplings to hydraulic hose lines having 1/2" pipe thread (1/2" female pipe x 7/8" - 18 NF male)

1шт.
