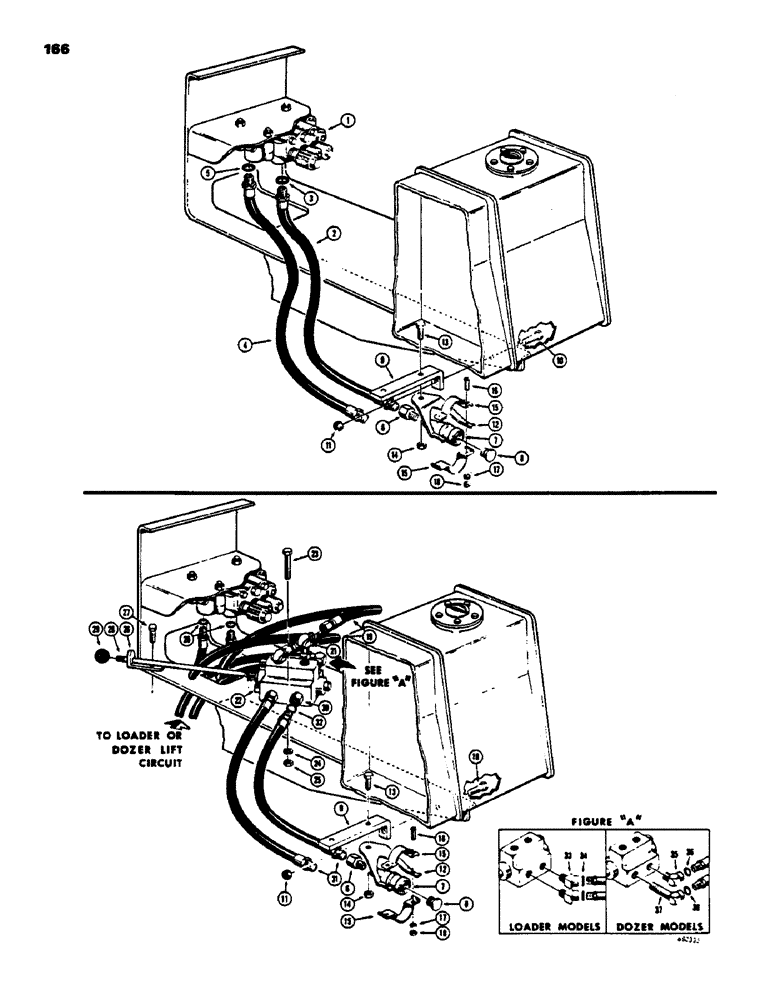

Запчасти Case 450 (166) - PULL BEHIND HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic, see Figure 216 for proper valve

1шт.

2

D40257

HOSE

- 41" (1041 mm) long, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D40258

HOSE

- 37" (940 mm) long, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

FITTING - coupling

2шт.

7

A28542

COUPLING, QUICK, FEM

COUPLING - female, parts list Figure 170

2шт.

A28541

COUPLING, BREAK AWAY

COUPLING - male, parts list Figure170 (1), not illustrated

2шт.

8

A22768

PLUG

- dust

2шт.

9

D40251

BRACKET - mounting

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

11

131-6

LOCK NUT,3/8"-16, GC

NUT - hex self lock, 3/8" - 16 NC

1шт.

12

A27360

BRACKET

- coupling

2шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

131-4

LOCK NUT,5/16"-18, GB

NUT - hex self lock, 5/16" -18 NC

2шт.

15

A27423

CLAMP

- coupling

4шт.

16

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

RHMS - no. 8 - 32 NC x 5/8"

4шт.

17

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

18

129-6

NUT,#8-32

4шт.

19

D25823

HOSE

- 16 - 1/2" (419 mm) long, pull behind with diversion valve, Includes: Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

pull behind with diversion valve

1шт.

21

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

FITTING - 90 deg., pull behind with diversion valve

2шт.

22

D26726

VALVE

- diversion, parts list Figure 172,pull behind

1шт.

23

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3", pull behind with diversion valve

2шт.

24

92-6

LOCK WASHER,3/8"

pull behind with diversion valve 3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, pull behind with diversion valve

2шт.

26

D38913

BRACKET

- guide, diversion valve rod, pull behind

1шт.

27

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Pull behind with diversion valve Hex, 1/2"-13 x 2", G5

1шт.

28

D38914

ROD

- diversion valve control, pull behind

1шт.

29

70213

KNOB

- control rod, pull behind with diversion valve

1шт.

30

218-5040

ADAPTER

FITTING - straight, Male-female, pull behind diversion valve

2шт.

31

D40247

HOSE

- 27" (686 mm) long, pull behind with diversion valve, Includes: Ref. 32

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

pull behind with diversion valve

1шт.

33

D38916

FITTING

- special, Loader Models only, pull behind with diversion valve, Includes: Ref. 34

2шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

pull behind with diversion valve

1шт.

35

D40249

FITTING

- special, Dozer Models only, pull behind with diversion valve, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

pull behind with diversion valve

1шт.

37

D40250

FITTING

- special, Dozer Models only, pull behind with diversion valve, Includes: Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

pull behind with diversion valve

1шт.
