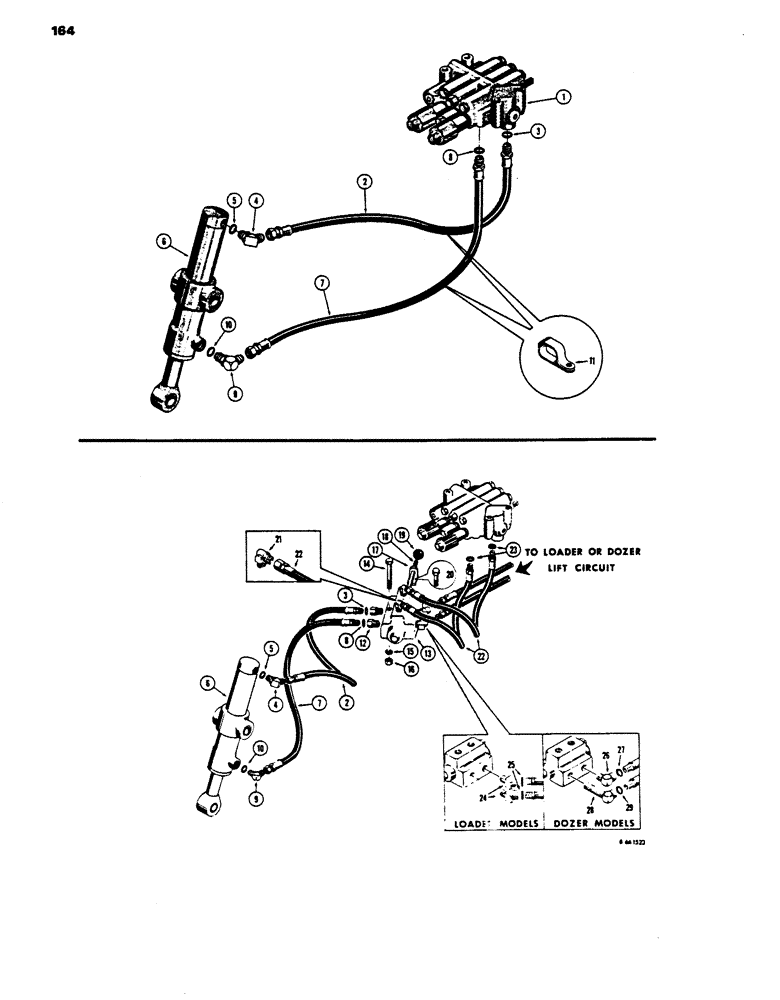

Запчасти Case 450 (164) - RIPPER HYDRAULIC CIRCUITS, RIPPER WITH DIVERSION VALVE (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic, see Figures 214 thru 216 for proper valve

1шт.

2

D37343

HOSE

- 43" (1092 mm) long, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - 45 deg., Incl. Ref 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

REF

INSTRUCTION

CYLINDER - ripper, see Figures 208 and 210 for cylinder

1шт.

7

D35069

HOSE

- 48" (1219 mm) long, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

R20839

FITTING

- male, 90 deg. (Special restrictor), Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- hose

1шт.

12

218-5040

ADAPTER

FITTING - special, ripper with diversion valve, Includes: Ref. 12A

2шт.

12a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Not shown, ripper with diversion valve

1шт.

13

D26726

VALVE

- diversion, parts list Figure 172, ripper

1шт.

14

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3", ripper with diversion valve

2шт.

15

92-6

LOCK WASHER,3/8"

ripper with diversion valve 3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, ripper with diversion valve

2шт.

17

D38913

BRACKET

- guide, diversion valve rod, ripper

1шт.

18

D38914

ROD

- diversion valve control, ripper

1шт.

19

70213

KNOB

- control rod, ripper with diversion valve

1шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Ripper with diversion valve Hex, 1/2"-13 x 2", G5

1шт.

21

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

FITTING - 90 deg., ripper with diversion valve

2шт.

22

D25823

HOSE

- 16-1/2" (419 mm) long, ripper with diversion valve, Includes: Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

ripper with diversion valve

1шт.

24

D38916

FITTING

ELBOW - special, used on Loader Models only, ripper with diversion valve, Includes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

ripper with diversion valve

1шт.

26

D40249

FITTING

- special, used on Dozer Models only, ripper with diversion valve, Includes: Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

ripper with diversion valve

1шт.

28

D40250

FITTING

- special, used on Dozer Models only, ripper with diversion valve, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

ripper with diversion valve

1шт.
