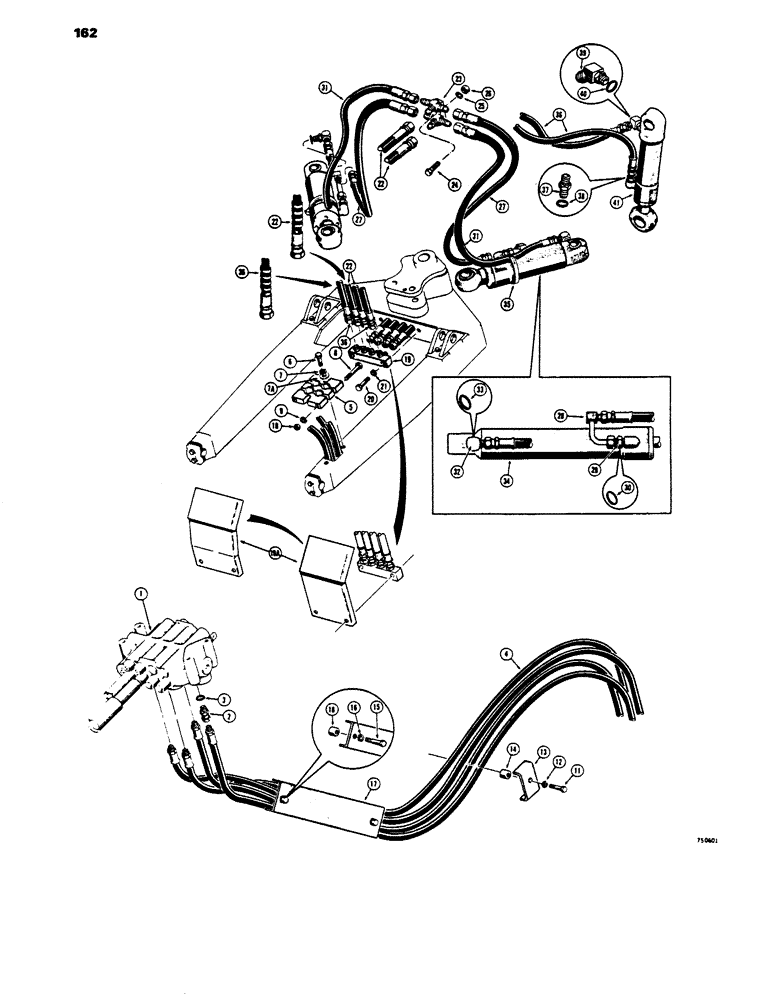

Запчасти Case 450 (162) - ANGLE-TILT DOZER HYDRAULIC CIRCUIT, (ANGLE AND TILT CIRCUIT) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic, see Figures 214 thru 216 for proper valve

1шт.

2

D37118

ADAPTER

FITTING - special, straight, Includes: Ref. 3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D36128

HOSE,9.53mm ID x 141mm L, SAE 100R2

- 141" (3607 mm) long

4шт.

5

D36131

SET

BLOCK - clamp, hose

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

7a

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

8

13-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

HHCS - 1/4" - 20 NC x 4-1/2"

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

25-104

NUT,1/4"-20, G5

2шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1-2шт.

12

92-6

LOCK WASHER,3/8"

1-2шт.

13

D36134

CLAMP

- hose

1-2шт.

14

NSS

NOT SOLD SEPARAT

BLOCK - tapped

1-2шт.

15

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

D36132

GUARD - hose

1шт.

18

NSS

NOT SOLD SEPARAT

BLOCK - tapped

2шт.

19

D36130

BLOCK

- manifold, rear

1шт.

19a

R24127

GUARD

-, Serial Range: hoses-manifold

1шт.

20

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

R30879

HOSE

- 22" (1219 mm) long

2шт.

23

R30914

MANIFOLD

- dozer blade (ports)

1шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

1шт.

25

92-8

LOCK WASHER,1/2"

1шт.

26

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

27

R30835

HOSE ASSY.

HOSE - 19" (483 mm) long

2шт.

28

D28205

PIPE

TUBE - angling cylinder, rod end

2шт.

29

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, male, straight, Incl. Ref 30 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

31

R30836

HOSE

- 28" (711 mm) long

2шт.

32

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - special, 90 deg., Includes: Ref. 33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

REF

INSTRUCTION

CYLINDER - angling, see Figures 200 and 202 for cylinder

2шт.

35

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose and tube to cylinder

2шт.

36

R30953

HOSE

- 57" (1438 mm) long

2шт.

37

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, male, straight, Incl. Ref 38 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

39

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, 45 , Includes: Ref. 40

1шт.

O

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

41

REF

INSTRUCTION

CYLINDER - tilt, see Figures 204 and 206 for cylinder

1шт.
