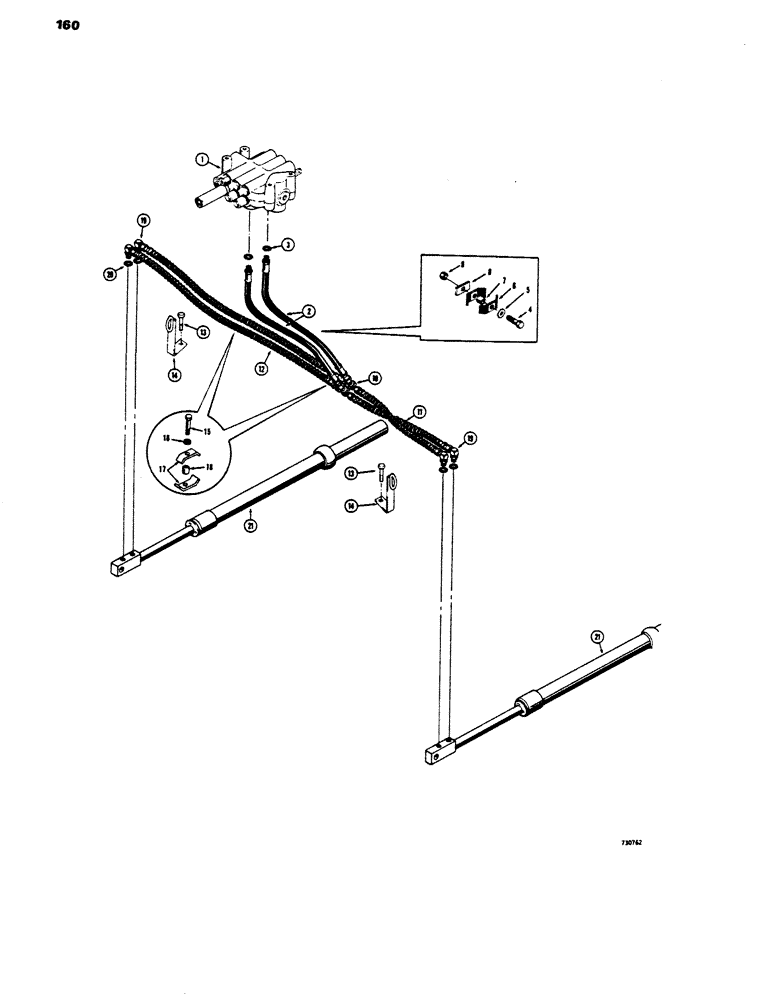

Запчасти Case 450 (160) - ANGLE DOZER HYDRAULIC CIRCUIT, ANGLE CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see Figures 214 thru 216 proper valve

1шт.

2

D34838

HOSE

- 33" (838 mm) long, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

HHCS - 5/16" - 18 NC x 2-1/2"

1шт.

5

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

6

D33316

CLAMP

- hose

2шт.

7

D33829

BUSHING

SPACER - clamp

1шт.

8

D35211

BLOCK - clamp

1шт.

9

131-4

LOCK NUT,5/16"-18, GB

NUT - hex self lock, 5/16" - 18 NC

1шт.

10

218-595

TEE,7/8"-14, 37 Degree

- hose

1шт.

11

D34834

HOSE

- R.H., 23" (584 mm) long

2шт.

12

D34836

HOSE

- L.H., 49" (1245 mm) long

2шт.

13

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

14

D40793

GUIDE - hose

2шт.

15

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

R17319

CLAMP

- hose

4шт.

18

D33829

BUSHING

SPACER - clamp

2шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, 90 deg., Incl. Ref. 20

4шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

REF

INSTRUCTION

CYLINDER - angling, see Figure 196 for proper cylinder

2шт.
