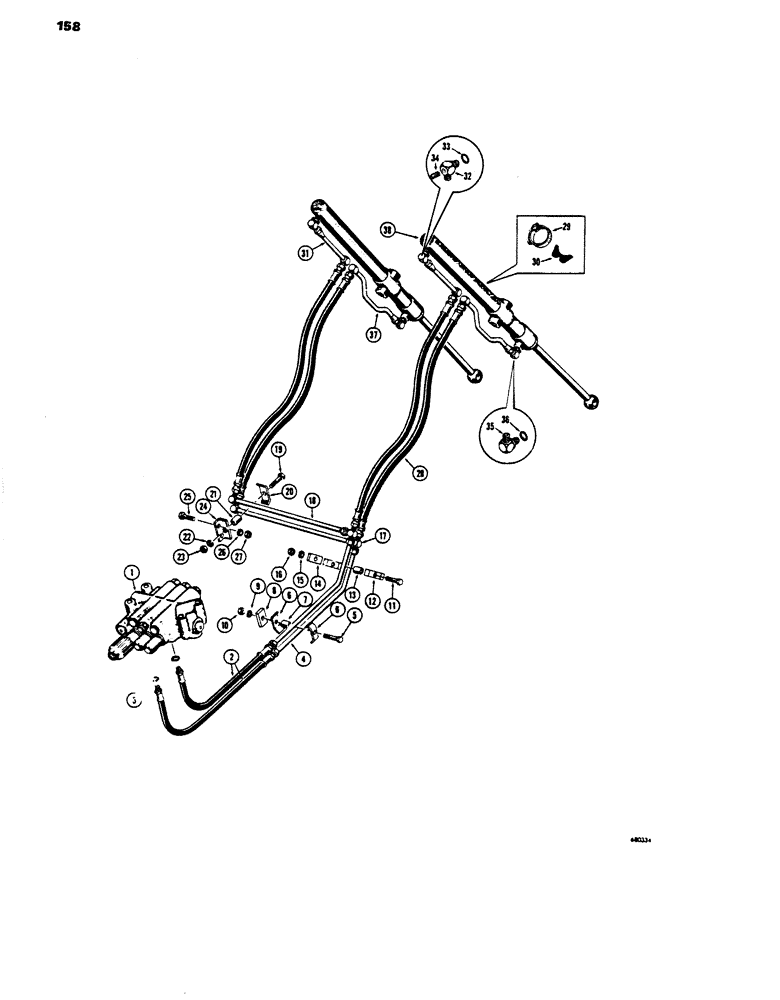

Запчасти Case 450 (158) - DOZER LIFT HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic, see Figures 214 thru 216 for proper valve

1шт.

2

D34759

HOSE

- 25" (635 mm) long, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D34753

TUBE

- valve to crossover tubes

2шт.

5

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

1шт.

6

D31782

FIXING BRACKET

CLAMP - tube

2шт.

7

D35228

SPACER

- clamp

1шт.

8

D35229

BLOCK - clamp (Used on crawlers without step plate)

1шт.

9

92-8

LOCK WASHER,1/2"

1шт.

10

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

11

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

(Non ROPS Models) Hex, 5/16"-18 x 2 1/2", G5

1шт.

11

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

HHCS - 5/16" - 18 NC x 1-3/8" ( ROPS Models)

1шт.

12

R17319

CLAMP

- tube

2шт.

13

D33552

BUSHING

SPACER - clamp

1шт.

14

D35211

BLOCK - clamp (Non ROPS Models)

1шт.

15

92-5

LOCK WASHER,5/16"

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, if used

1шт.

17

218-595

TEE,7/8"-14, 37 Degree

- tube, crossover

2шт.

18

D34749

TUBE

- crossover

2шт.

19

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

1шт.

20

R16916

CLAMP - tube

2шт.

21

D33552

BUSHING

SPACER - tube

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

24

D35164

BRACKET - tube mounting

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

28

19178

HOSE

- 33-1/2" (851 mm) long

4шт.

29

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - tube to cylinder

4шт.

30

D38648

BLOCK

SADDLE - tube, rubber

4шт.

31

D34747

TUBE

- lift cylinder, closed end

2шт.

32

R19576

FITTING

- special, 90 deg., Includes: Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

35

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, 90 deg.

3шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Includes: Ref. 36

1шт.

37

D34745

TUBE

- lift cylinder, rod end (Used on Power Angling Dozer Models)

2шт.

D36138

HOSE ASSY.

TUBE - lift cylinder, rod end (Used on Power Angle-Tilt Dozer Models)

2шт.

38

REF

INSTRUCTION

CYLINDER - lift, see Figures 190 thru 196 for proper cylinders

2шт.
