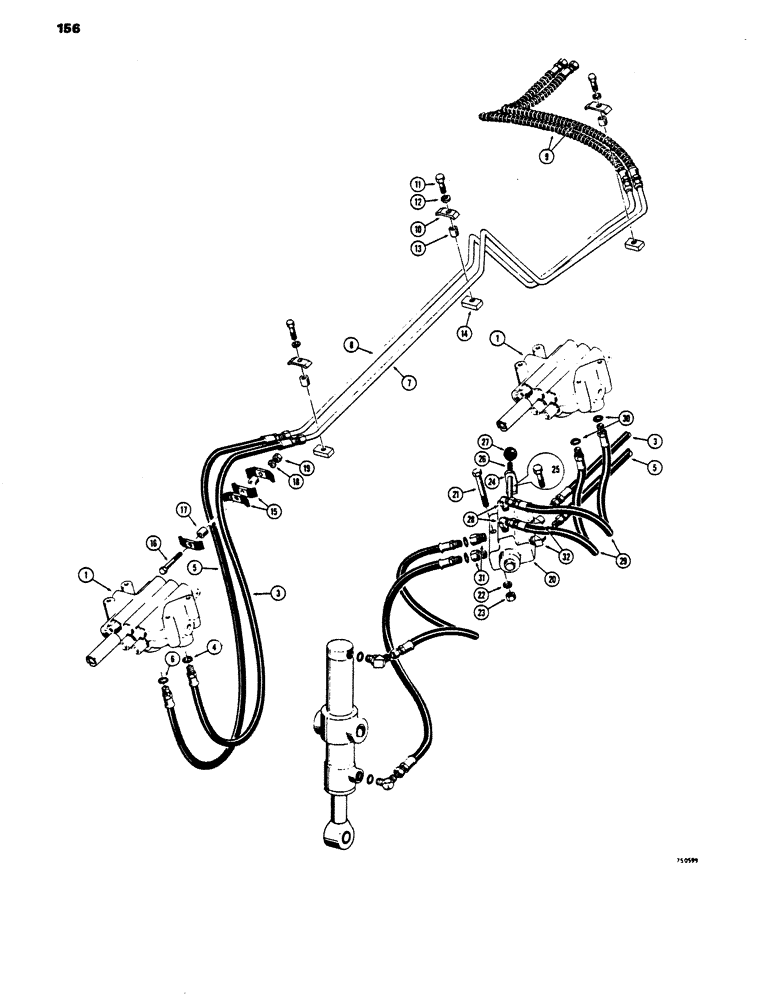

Запчасти Case 450 (156) - LOADER ARM AUXILIARY HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VAVLE - control, see Figures 214 thru 216 for proper valve

1шт.

3

D35875

HOSE

- 48 -1/2" (1232 mm) long, Includes: Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

D35873

HOSE

- 52-3/4" (1340 mm) long, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

D35866

TUBE

- front control valve port to actuating cylinder (R.H.)

1шт.

8

D35865

TUBE

- rear control valve port to actuating cylinder (L.H.)

1шт.

9

D35869

HOSE

- control valve to actuating cylinder, upper section

2шт.

10

38331

PLATE

CLAMP - tube

3шт.

11

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

3шт.

12

92-5

LOCK WASHER,5/16"

3шт.

13

D33552

BUSHING

SPACER - tube, clamp

3шт.

14

D24663

BLOCK

- tapped

3шт.

15

D33316

CLAMP

- hose

4шт.

16

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

1шт.

17

D36524

BUSHING

SPACER - clamp, hose

2шт.

18

195-5

WASHER

- flat, 5/16"

1шт.

19

131-4

LOCK NUT,5/16"-18, GB

NUT - hex self lock, 5/16" - 18 NC

1шт.

20

D26726

VALVE

- diversion, parts list Figure 172, used on loader ripper or pull behind models

1шт.

21

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3", used on loader ripper or pull behind models

2шт.

22

92-6

LOCK WASHER,3/8"

used on loader ripper or pull behind models 3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used on loader ripper or pull behind models

2шт.

24

D38913

BRACKET

- diversion valve control rod, used on loader ripper or pull behind models

1шт.

25

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Used on loader ripper or pull behind models Hex, 1/2"-13 x 2", G5

1шт.

26

D38914

ROD

- control, diversion valve, used on loader ripper or pull behind models

1шт.

27

70213

KNOB

- control rod, used on loader ripper or pull behind models

1шт.

28

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

FITTING - 90 deg., used on loader ripper or pull behind models

2шт.

29

D25823

HOSE

- 16-1/2" (419 mm) long, used on loader ripper or pull behind models, Includes: Ref. 30

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

0- RING, used on loader ripper or pull behind models

2шт.

31

218-5040

ADAPTER

FITTING - straight, male-female, used on loader ripper or pull behind models

2шт.

32

D38916

FITTING

- special, used on loader ripper or pull behind models

2шт.
