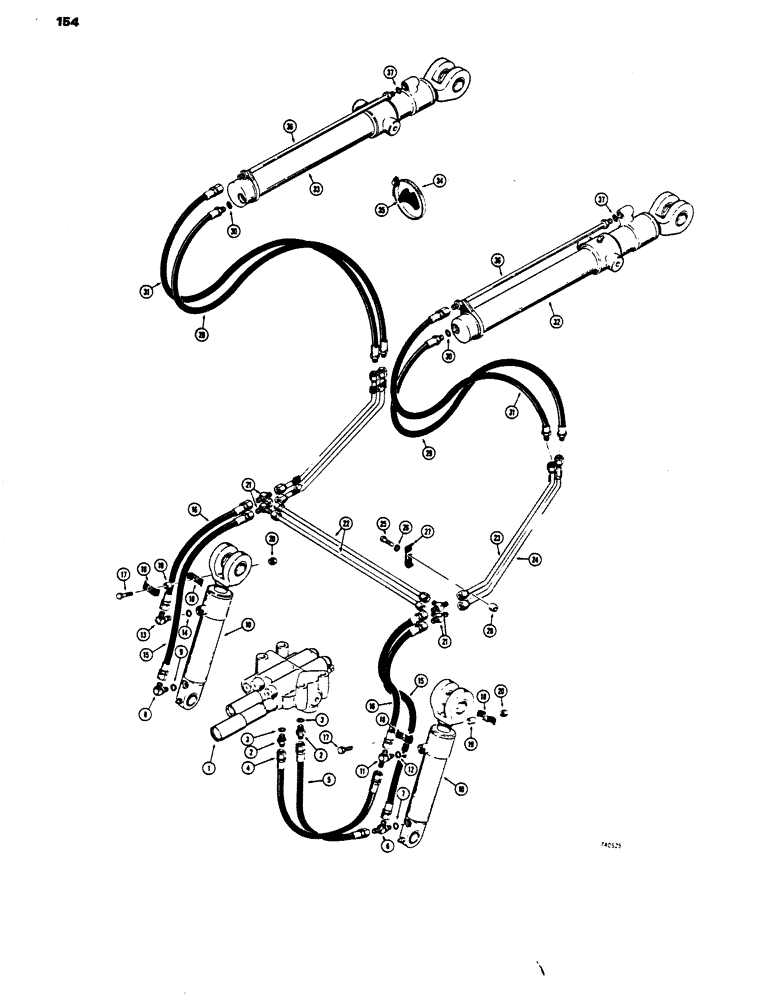

Запчасти Case 450 (154) - LOADER BUCKET TILT AND HYDRA-LEVELING HYDRAULIC CIRCUITS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see Figures 214 thru 216 for proper valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - male, straight, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

L51198

HOSE,0.50" ID x 28.00", SAE 100R2 Type A

ASSY, 0.50" ID x 28.00", SAE 100R2

1шт.

5

D27484

HOSE

- 19-3/8" (492 mm) long

1шт.

6

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 deg., adjustable, Incl. Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

REF

INSTRUCTION

CYLINDER - hydra-leveling, see Figures 182 and 184 for cylinders

2шт.

11

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, male, Includes: Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 , adjustable, Incl. Ref. 14

1шт.

o

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

L46723

HOSE

- 42" (1067 mm) long

2шт.

16

D27978

HOSE

- 30-3/4" (781 mm) long

2шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

18

R15257

CLAMP

-hose

4шт.

19

D38524

SPACER

- clamp

2шт.

20

131-6

LOCK NUT,3/8"-16, GC

NUT - hex self lock, 3/8" - 16 NC

2шт.

21

218-595

TEE,7/8"-14, 37 Degree

- male

4шт.

22

D34768

TUBE

- crossover

2шт.

23

R30528

TUBE,0.625" OD x 14.75, 17.58" L

- lift arm, upper

2шт.

24

R30530

TUBE,0.625" OD x 16.3, 19.4" L

- lift arm, lower

2шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

4шт.

26

92-5

LOCK WASHER,5/16"

4шт.

27

D33316

CLAMP

- tube

4шт.

28

D33552

BUSHING

SPACER - clamp

4шт.

29

L13750

HOSE

- 35" (874 mm) long, Includes: Ref. 30

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

0-RING

1шт.

31

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- 40" (1016 mm) long

1шт.

32

REF

INSTRUCTION

CYLINDER - dump, R.H., see Figures 178 and 180 for cylinders

1шт.

33

REF

INSTRUCTION

CYLINDER - dump, L.H., see FIgures 178 and 180 for cylinders

1шт.

34

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

35

R24703

SUPPORT

CUSHION - rubber

2шт.

36

L13737

TUBE

- cylinder, rod end

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.
