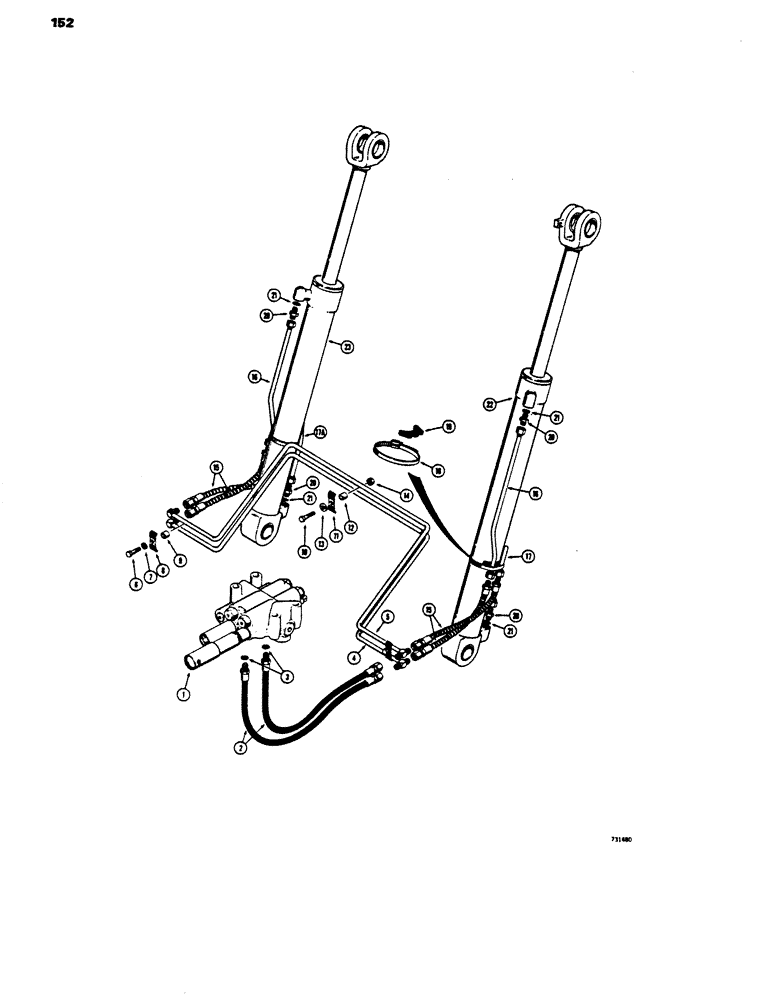

Запчасти Case 450 (152) - LOADER LIFT HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE -loader control, see Figures 214 thru 216 for proper valve

1шт.

2

D34782

HOSE

- 20" (508 mm) long, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D34774

TUBE

- crossover, lift (Lower)

1шт.

5

D34830

TUBE

- crossover, lift (Upper)

1шт.

6

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

R17319

CLAMP

- tube

2шт.

9

D33552

BUSHING

SPACER - clamp

2шт.

10

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

11

R17319

CLAMP

- tube

1шт.

12

D33552

BUSHING

SPACER - clamp

1шт.

13

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

14

131-4

LOCK NUT,5/16"-18, GB

NUT - hex self lock, 5/16" - 18 NC

1шт.

15

D34780

HOSE

- 19" (473 mm) long

4шт.

16

R31355

TUBE,0.625" OD x 21.2" L

- lift cylinder, rod end

2шт.

17

R31353

TUBE

-lift cylinder, closed end (R.H.)

1шт.

17a

R31352

TUBE,0.625" OD x 15, 4.64" L

- lift cylinder, closed end (L.H.)

1шт.

18

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - rod to lift cylinder (replaces 214-268)

2шт.

19

R24703

SUPPORT

CUSHION - rubber

2шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - male, straight, Includes: Ref. 21

4шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

REF

INSTRUCTION

CYLINDER - lift, R.H., see Figures 174 and 176 for cylinders

1шт.

23

REF

INSTRUCTION

CYLINDER - lift, L.H., see Figures 174 and 176 for cylinders

1шт.
