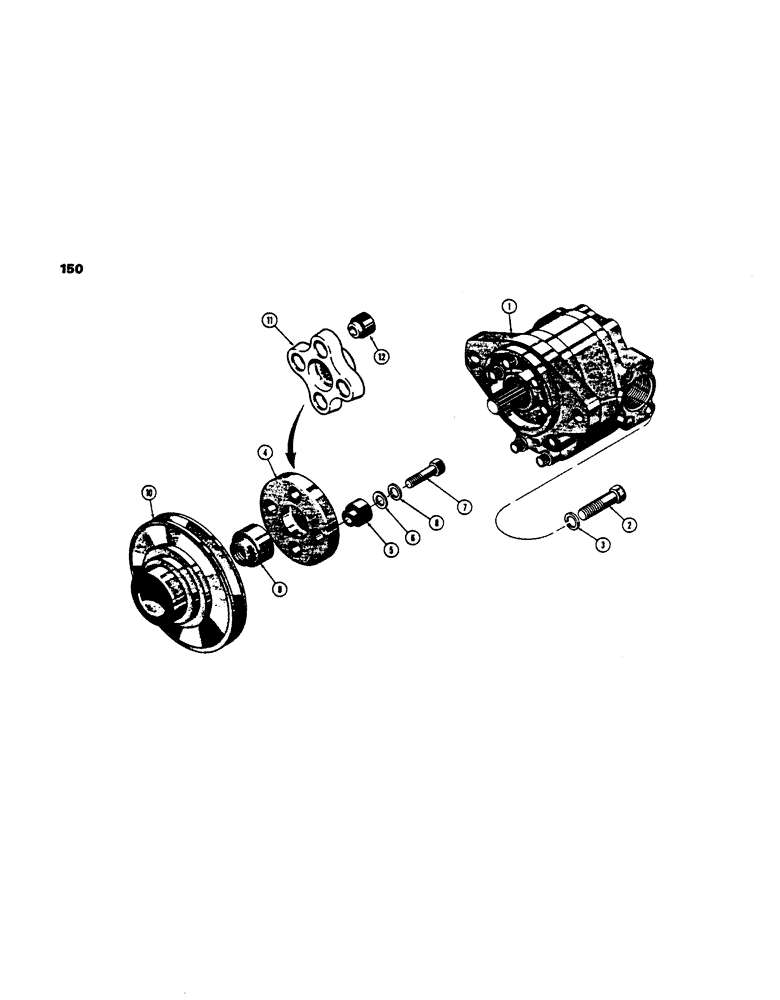

Запчасти Case 450 (150) - PUMP DRIVE (07) - HYDRAULIC SYSTEM

1

D41390

PUMP

PUMP - hydraulic, parts list Figure 148

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

87644746R

REMAN-HYD PUMP

450, (S/N 3060306 & AFTER), Reman For New P/N D41390 & 87644746

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, , Pump drive Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

LOCK WASHER, , pump drive 1/2"

2шт.

4

D140524

FLEXIBLE COUPLING,13T

COUPLING - flexible, Use A51885, pump drive, Includes: Ref. 5

1шт.

5

G36905

BLOCK

BLOCK AND BUSHING - flex, coupling, pump drive

4шт.

6

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

WASHER - special, pump drive

4шт.

7

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

BOLT, Hex, 7/16"-14 x 1 1/2, G5, Pump drive

4шт.

8

92-7

LOCK WASHER,7/16"

LOCK WASHER, , pump drive 7/16"

4шт.

9

A35673

NUT

NUT - fan drive pulley, pump drive

1шт.

10

A50962

PULLEY

PULLEY - fan and alternator drive, pump drive

1шт.

11

A51885

COUPLING, BREAK AWAY

COUPLING - flexible, pump drive, Includes: Ref. 12

1шт.

12

A45216

BUSHING

BLOCK AND BUSHING - flex coupling, pump drive

4шт.
