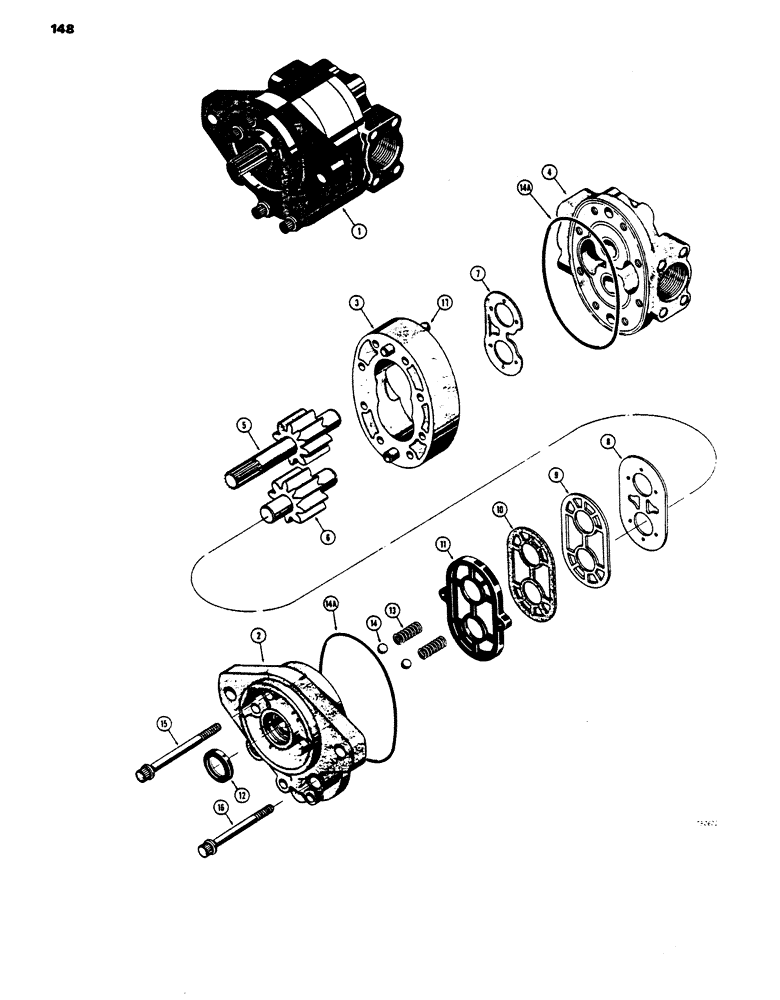

Запчасти Case 450 (148) - D41390 HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

1

D41390

PUMP

PUMP - hydraulic, Cessna No. 24527-1AAC or 24504-LAN, Includes: Ref. 2 - 17

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

87644746R

REMAN-HYD PUMP

450, (S/N 3060306 & AFTER), Reman For New P/N D41390 & 87644746

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

D48879

COVER

COVER - driver shaft end

1шт.

3

D49371

HOUSING

BODY - center

1шт.

4

D48883

COVER

COVER - port end

1шт.

D52929

GEAR

GEAR SET - drive and idler, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - drive, (1.30" long)

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - idler

1шт.

D59656

GASKET KIT

KIT - pump rebuild, Includes: Ref. 7 - 14A

1шт.

7

D41322

PLATE

PLATE - thrust

1шт.

8

D41321

DIAPHRAGM

DIAPHRAGM

1шт.

9

H269035

GASKET - protector

1шт.

10

A41244

GASKET

GASKET -backup

1шт.

11

D48888

SEAL

SEAL - diaphragm

1шт.

12

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - shaft

1шт.

13

D31403

SPRING

SPRING - ball retaining

2шт.

14

211-312

BALL,13/32" Dia

BALL - steel, 13/32"

2шт.

14a

H756221

O-RING,4.987" ID x 5.193" OD

SEAL - 0-ring

2шт.

15

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - Ferry Cap, 3/8" - NC x 3-14"

4шт.

16

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - Ferry Cap, 3/8" - 16 NC x 3-1/2"

4шт.

17

D49373

DOWEL

DOWEL - body

2шт.
