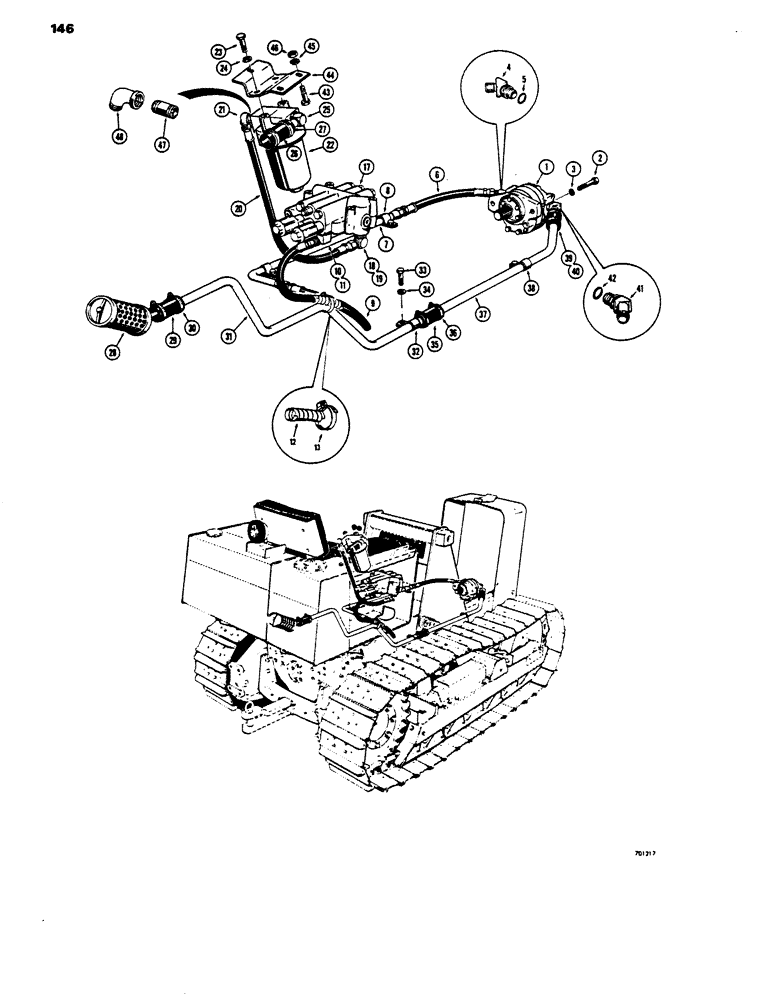

Запчасти Case 450 (146) - EQUIPMENT HYDRAULIC CIRCUIT, PUMP TO VALVE AND RESERVOIR (07) - HYDRAULIC SYSTEM

1

D41390

PUMP

PUMP - hydraulic, parts list figure 148

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

87644746R

REMAN-HYD PUMP

450,(S/N 3060306 & After), Reman For New P/N D41390 & 87644746

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

4

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, 45 deg., Includes: Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RING

1шт.

6

D35040

HOSE

HOSE - 15" (381 mm) long

1шт.

7

D35038

TUBE

TUBE -, Serial Range: pump-valve

1шт.

8

R14668

CLAMP

CLAMP - tube

2шт.

9

D37601

HOSE

HOSE - 43" (1092 mm) long

1шт.

10

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, 45 deg., Includes: Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING, 12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

R12586

TAPE

WRAP - hose

1шт.

13

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

1шт.

17

REF

INSTRUCTION

VALVE - control, see Figures 214 thru 218 for proper valve

1шт.

18

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW, , Male, Includes: Ref. 19 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING, 12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

D35045

LARGE HOSE

HOSE,LARGE HOSE - 22" (559 mm) long

1шт.

21

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

FITTING - 90 deg.

1шт.

22

D43567

FILTER ASSY

FILTER - return line, parts list Figure 150

1шт.

23

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

24

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

25

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose

1шт.

26

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

HOSE - 3-1/2" (89 mm) long

1шт.

27

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

HOSE CLAMP, #24, 1.06/2.00 Type F Worm

2шт.

28

D33557

FILTER, ELEMENT

ELEMENT, FILTER FILTER - suction line

1шт.

29

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

connecting, suction line to pump

1шт.

30

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

HOSE CLAMP, #24, 1.06/2.00 Type F Worm

2шт.

31

D35044

TUBE

TUBE - suction line

1шт.

32

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

CLAMP - tube

1шт.

33

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 5/8", G5, Full Thd

1шт.

34

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

35

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

suction line to pump

1шт.

36

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

HOSE CLAMP, #24, 1.06/2.00 Type F Worm

2шт.

37

D35020

TUBE

TUBE - suction line

1шт.

38

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

CLAMP - tube

1шт.

39

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

suction line to pump

1шт.

40

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

HOSE CLAMP, #24, 1.06/2.00 Type F Worm

2шт.

41

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

FITTING, , Incl. Ref. 42 45º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded

1шт.

42

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

O-RING

1шт.

43

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, , Used on models w/ return-to-dig feature Hex, 3/8"-16 x 7/8", G5, Full Thd

3шт.

44

D44233

SPARE PART BRACKET - filter mounting, used on models w/ return to dig feature

1шт.

45

92-6

LOCK WASHER,3/8"

LOCK WASHER, , used on models w/ return to dig feature 3/8"

3шт.

46

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8" - 16 NC, used on models w/ return to dig feature

3шт.

47

221-239

SUN VISOR,Nipple, 1" NPT x 2"

NIPPLE - male, used on models w/ return to dig feature

1шт.

48

221-379

ELBOW,90 Degree, 1" NPT

FITTING - 90 deg., used on models w/ return to dig feature

1шт.
