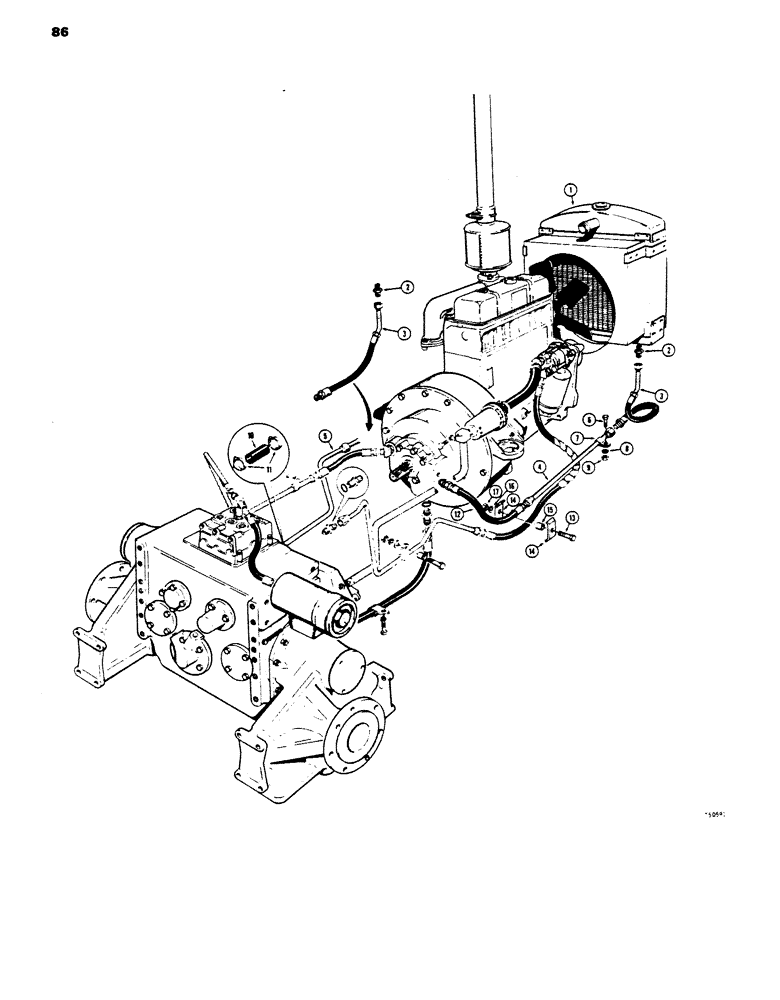

Запчасти Case 450 (086) - CRAWLER HYDRAULIC CIRCUIT, COOLING SYSTEM (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

RADIATOR - cooling, see Figure 36 for radiators

1шт.

2

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

FITTING - straight, male

2шт.

3

R24230

HOSE

- at oil cooler, 13" (330 mm) long

2шт.

4

R24231

TUBE

- converter to oil cooler, R.H.

1шт.

5

R24232

TUBE,0.625" OD

- oil cooler to sump, L.H.

1шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tube (2 L.H. and 1 R.H.)

3шт.

8

92-5

LOCK WASHER,5/16"

3шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

3шт.

10

R24723

HOSE

- 5/8" (16 mm) I.D. x 3" long

1шт.

11

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

12

D38533

HOSE

- 11-3/4" (294 mm) long

1шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

14

D33316

CLAMP

- hose

2шт.

15

D33554

BUSHING

SPACER - clamp

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - not illustrated

1шт.

18a

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- not illustrated

1шт.
