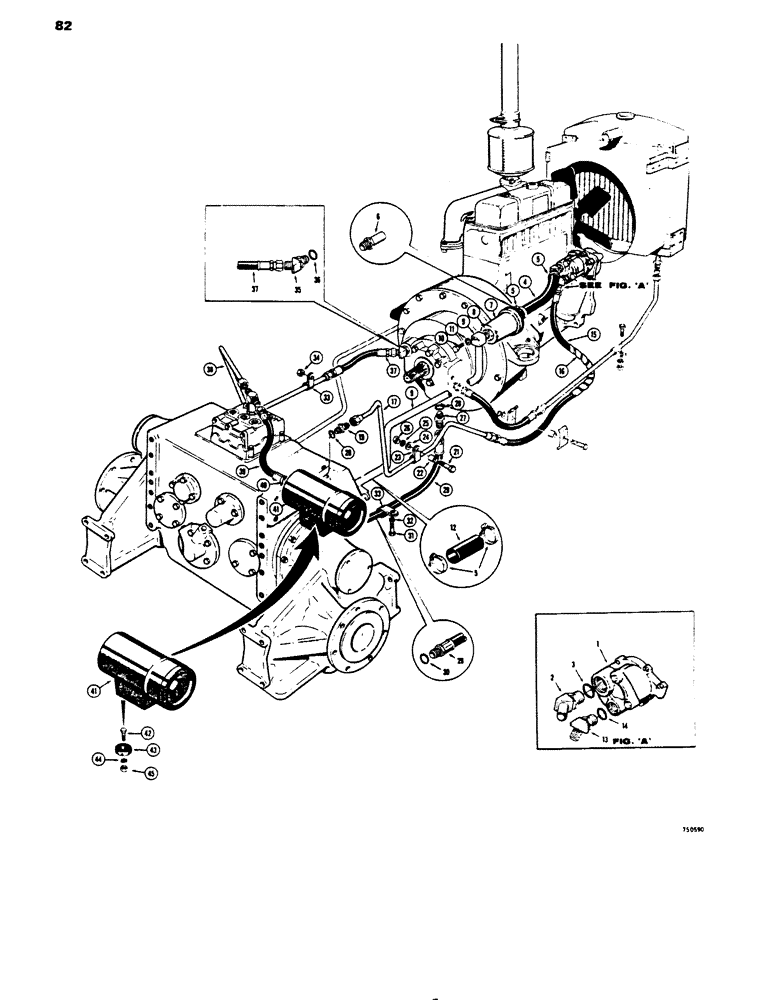

Запчасти Case 450 (082) - CRAWLER HYDRAULIC CIRCUITS, PUMP TO TORQUE CONVERTER AND (07) - HYDRAULIC SYSTEM

1

D35016

PUMP

- torque converter, parts list Figure 92

1шт.

2

D35138

ELBOW

FITTING - special, 45 deg., Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

D33365

HOSE

- pump to filter

1шт.

5

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

6

D35137

LINE

FITTING - hose stem

1шт.

7

D35144

FILTER

FILTER - hydraulic oil, parts list Figure 88

1шт.

8

221-239

SUN VISOR,Nipple, 1" NPT x 2"

NIPPLE - 1" NPT x 2"

1шт.

9

D35149

TUBE

- suction, transmission

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction, transmission, rear 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

13

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref 14 45º, 7/8"-14 x 1 1/16"-12, O-Ring

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

D35136

HOSE

- 38" (965 mm) long

1шт.

16

R12586

TAPE

WRAP - hose

1шт.

17

D35151

TUBE

-, Serial Range: pump-filter

1шт.

19

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, Includes: Ref. 20

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

22

D34003

SPACER - clamp, Loader Models only

1шт.

23

R26169

CLAMP - tube, vibration dampener

1шт.

24

95-8

WASHER,1/2"

flat 1/2"

1шт.

25

92-8

LOCK WASHER,1/2"

1шт.

26

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight, male

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

D38702

HOSE

- 33" (838 mm) long, Includes: Ref. 30

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

31

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

32

92-5

LOCK WASHER,5/16"

1шт.

33

NLS

NO LONGER SERVICED

- hose

2шт.

34

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, self lock, 3/8" - 16 NC

1шт.

35

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - 45 deg., male, Incl. Ref 26

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

D38533

HOSE

- 11-3/4" (299 mm) long

1шт.

38

D38529

HOSE

TUBE - at transmission control valve

1шт.

39

D45617

HOSE

- 17" (432 mm) long

1шт.

40

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

41

REF

INSTRUCTION

FILTER - oil, see Figure 88

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Without rubber mount Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

with rubber mount Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

43

D40406

MOUNTING PARTS

MOUNT - rubber, D46132 filter

4шт.

44

92-6

LOCK WASHER,3/8"

if used 3/8"

4шт.

45

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, without D40406 mount

4шт.

45

131-354

LOCK NUT,1/2"-13, GA

NUT - hex self lock, 3/8" - 16 NC, with D40406 mount

4шт.
