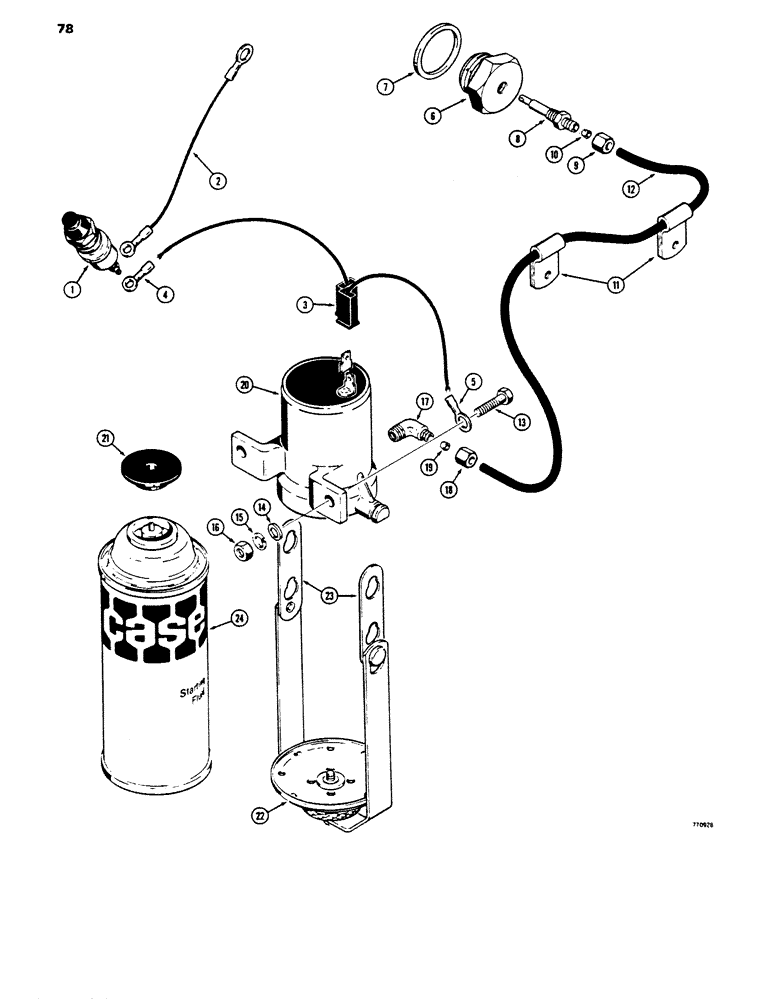

Запчасти Case 450 (078) - COLD START AID (ETHER INJECTION) (06) - ELECTRICAL SYSTEMS

1

D34924

SWITCH

- push button

1шт.

2

F21342

ELECTRICAL WIRE

WIRE - jumper

1шт.

3

R29794

CABLE

-, Serial Range: switch-solenoid

1шт.

4

223-325

TERMINAL - eyelet, No. 10

1шт.

5

223-326

TERMINAL - eyelet, 5/16"

1шт.

6

L10283

PLUG

- manifold

1шт.

7

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

R36920

INJECTOR ASSY.

INJECTOR - ether, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

BODY

1шт.

9

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

10

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

11

D43839

CLAMP

- tube

2шт.

12

D35275

TUBE

- nylon

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

A143381

SOLENOID

- ether injection, Includes: Ref. 17 - 22

1шт.

17

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1шт.

18

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

19

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

20

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

21

R30786

GASKET

- can

1шт.

22

R30785

BAIL

- can

1шт.

23

R30812

LINK

- bail extension

2шт.

24

B17072

START SPRAY FLUID

CAN - ether, 16 oz.

1шт.
