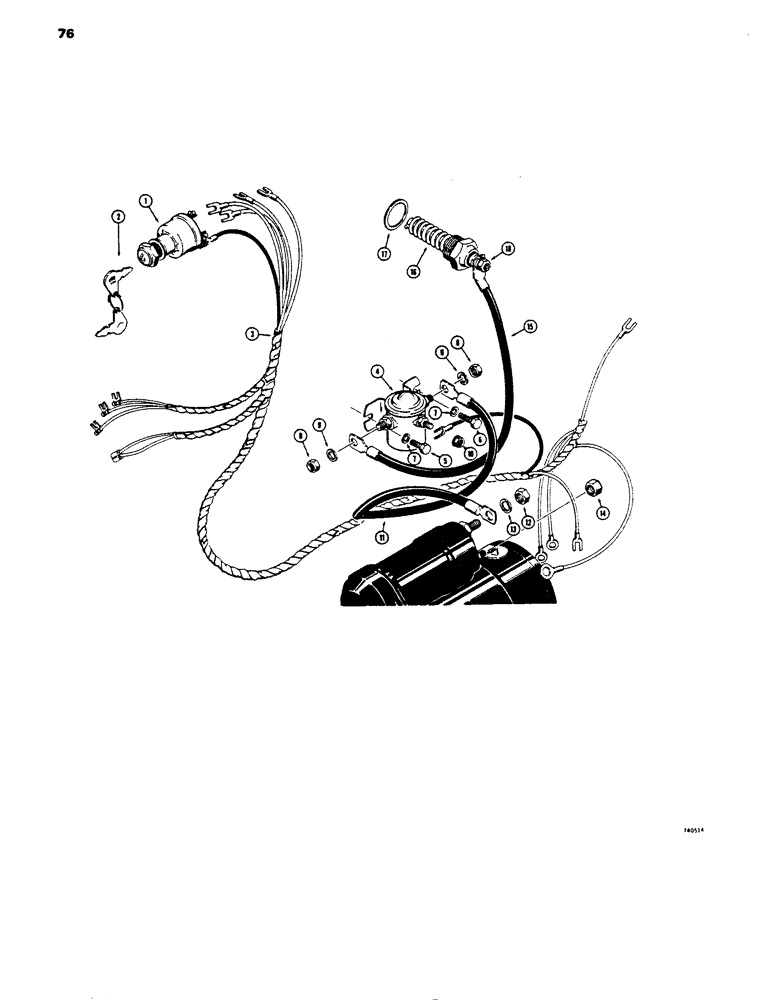

Запчасти Case 450 (076) - ENGINE PRE-HEATER (06) - ELECTRICAL SYSTEMS

D35092

SWITCH

AND KEY - electrical, Includes: Ref. 1 and 2

1шт.

1

D35092

SWITCH

- ignition

1шт.

2

D36822

KEY

- switch (Set of two)

1шт.

3

R30382

HARNESS

MAIN WIRING HARNESS

1шт.

4

A39079

SOLENOID

- manifold heater

1шт.

5

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

6

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

7

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

8

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- keps, No. 10 plated

2шт.

11

R29755

CABLE PULLING GRIP

CABLE -, Serial Range: starter-solenoid

1шт.

12

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- keps, No. 8 - 32 NC plated

1шт.

15

D51989

WIRE HARNESS

WIRE - solenoid to heater plug

1шт.

16

A37775

HEATER

PLUG - heater, manifold, Includes: Ref. 17 and 18

1шт.

17

A20916

MANIFOLD GASKET

GASKET - heater plug

1шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

- terminal 1/4" - 10 NC

1шт.
