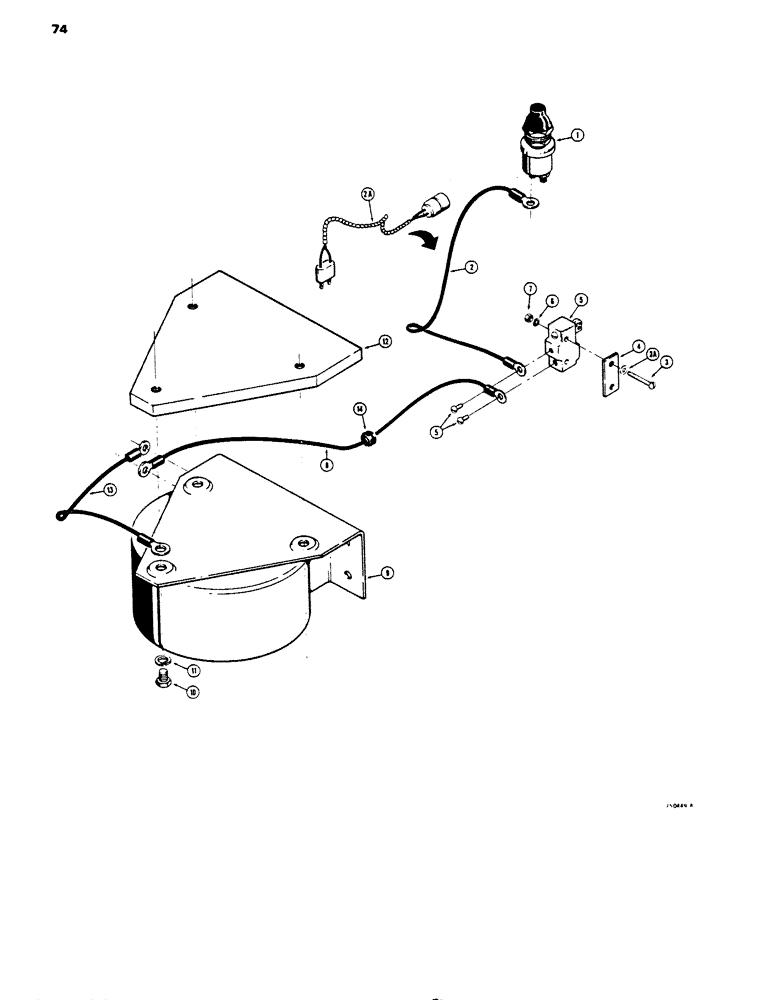

Запчасти Case 450 (074) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS

1

D34924

SWITCH

- starter, button uses spade connections

1шт.

1

R40432

SWITCH

- starter, button uses plug in connections

1шт.

2

R34959

WIRE - D34924 switch

1шт.

2a

R40831

ELECTRICAL WIRE

WIRE - R40432 Switch

1шт.

3

169-143

SCREW,Sl Fil Hd, #6 - 32 x 1 1/2"

- fillister head, slotted, No. 6 - 32 NC x 1-1/2"

2шт.

3a

195-7

WASHER,#6

- flat, No. 6

2шт.

4

R31181

PLATE

SPACER - plate

1шт.

5

L54683

SWITCH

- backup alarm

1шт.

6

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

7

129-15

NUT,#6-32

2шт.

8

R39289

ELECTRICAL WIRE

WIRE -, Serial Range: switch-alarm

1шт.

9

S223033

BUZZER

ALARM - backup

1шт.

10

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

12

R31184

PLATE - mounting, alarm

1шт.

13

R34956

ELECTRICAL WIRE

WIRE - ground, alarm

1шт.

14

R39516

GROMMET

1шт.
