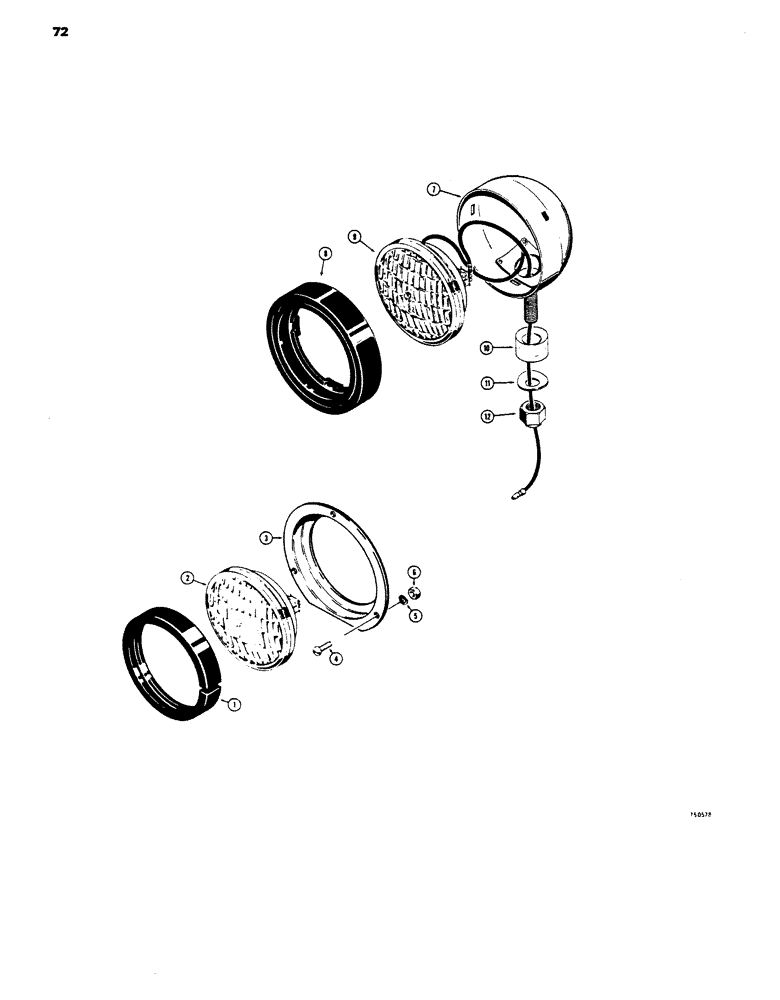

Запчасти Case 450 (072) - HEAD LIGHT (06) - ELECTRICAL SYSTEMS

1

D57287

RETAINER

SEAL - light (Rubber retainer), head light

2шт.

2

D33182

LAMP

- sealed unit, head light

2шт.

3

D57288

RING

RETAINER - light, head light

2шт.

4

192-516

SCREW - machine, pan, No. 10 - 24 NC x 1/2", head light

6шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Head light #10

6шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex, No.10 - 24 NC Plated, head light

6шт.

D34934

LAMP

TAILLIGHT ASSEMBLY, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

SHELL - lamp, taillight assembly

1шт.

8

A25213

RETAINER

- lamp, rubber, taillight assembly

1шт.

9

A24572

LAMP

- sealed unit, taillight assembly

1шт.

10

D37048

BUSHING

- pivot, taillight assembly

1шт.

11

D37049

WASHER

- special, taillight assembly

1шт.

12

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex self lock, 1/2" - 13 NF, taillight assembly

1шт.
