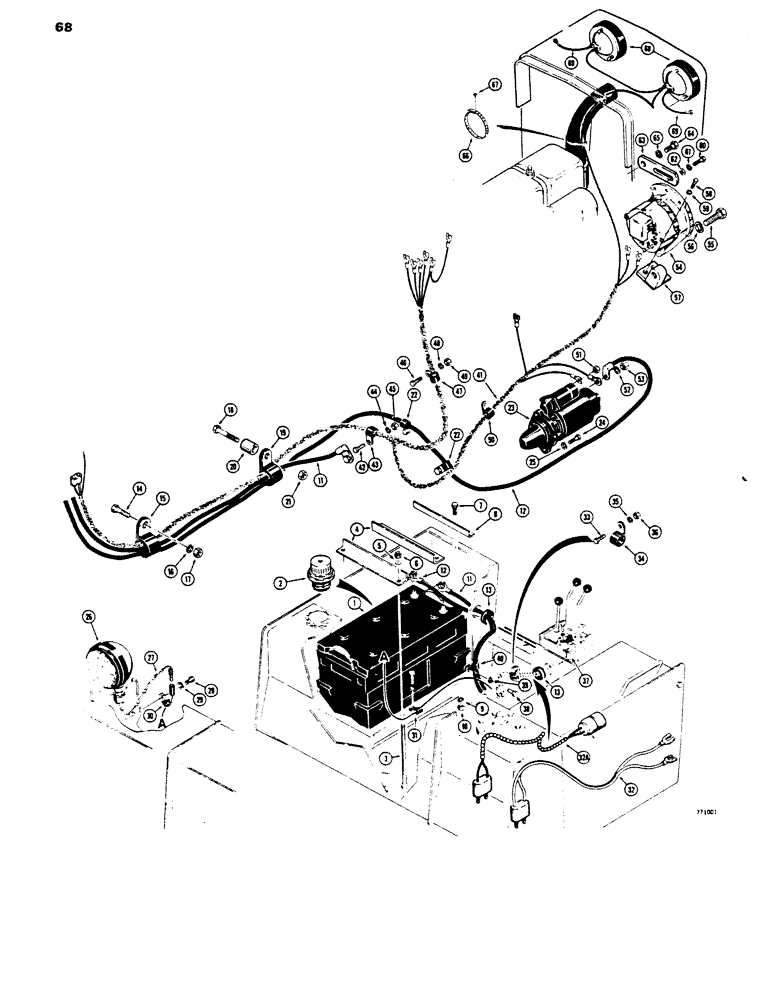

Запчасти Case 450 (068) - ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D44178
DRY BATTERY
- 12 volt, dry charger (Service Replacement)
1шт.
D44178 battery has standard caps which are to be replaced with non spill caps from old battery (if used) or order R30819 caps.
1шт.
2
R30819
CYLINDER END CAP
CAP - battery, non spill
6шт.
4
R39653
RETAINER
HOLDDOWN - battery
2шт.
5
195-21
WASHER,5/16"
- flat, 5/16"
4шт.
6
131-4
LOCK NUT,5/16"-18, GB
NUT - hex, self lock, 5/16" - 18 NC
4шт.
7
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
2шт.
8
D44203
RETAINER
- battery, angle
1шт.
9
92-6
LOCK WASHER,3/8"
2шт.
10
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
2шт.
11
R40379
CABLE
- battery, negative
1шт.
12
D51992
CABLE ASSY.
CABLE - battery, positive
1шт.
13
D35078
GROMMET,1 1/2" ID x 1 3/4" Groove Dia
- battery cable and starter wire
2шт.
14
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
1шт.
15
51200329
CLIP
CLAMP - cable and harness
1шт.
16
92-8
LOCK WASHER,1/2"
1шт.
17
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC
1шт.
18
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
HHCS - 3/8" - 16 NC x 3"
1шт.
19
51200320
CLAMP
- cables and harness
1шт.
20
A27328
SPACER
- clamp
1шт.
21
131-352
LOCK NUT,3/8"-16, GA
NUT - hex, self lock, 3/8"
1шт.
22
49838
CLAMP
- cable
2шт.
23
R29870
STARTING MOTOR
MOTOR - starter, Delco-Remy No. 1109149, parts list Figures 58 and 60
1шт.
24
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3шт.
25
92-6
LOCK WASHER,3/8"
3шт.
26
D34934
LAMP
LIGHT - tail, parts list Figure 72
1шт.
27
D34933
LOOM
- wire
1шт.
28
14-68
BOLT,Hex, 3/8" - 24 x 1/2", Gr 5
HHCS - 3/8" - 24 NF x 1/2"
1шт.
29
92-6
LOCK WASHER,3/8"
1шт.
30
515-2348
CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type
- tail light wire
1шт.
31
49832
CLAMP
- tail light wire
1шт.
32a
R40436
NO LONGER SERVICED
WIRE - plug in connections, without backup alarm
1шт.
32a
R40831
ELECTRICAL WIRE
WIRE - plug in connections, with backup alarm
1шт.
33
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
1шт.
34
49832
CLAMP
- starter wire
1шт.
35
92-8
LOCK WASHER,1/2"
1шт.
36
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC
1шт.
37
D34924
SWITCH
- starter, use R40432 switch and R40436 or R40831 wire
1шт.
37
R40432
SWITCH
- starter, uses R40436 or R40831 wire
1шт.
35
14-68
BOLT,Hex, 3/8" - 24 x 1/2", Gr 5
HHCS - 3/8" - 24 NF x 1/2"
1шт.
39
92-6
LOCK WASHER,3/8"
1шт.
40
D34980
CLAMP
- battery cable
1шт.
41
R30382
HARNESS
- electrical, pre-heater models
1шт.
41
R36927
HARNESS
- electrical, ether injector models
1шт.
42
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
1шт.
43
D20302
CLAMP,7/8", Insul, 3/8" Bolt
- harness
1шт.
44
92-6
LOCK WASHER,3/8"
1шт.
45
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
1шт.
46
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
47
D20302
CLAMP,7/8", Insul, 3/8" Bolt
- harness
1шт.
48
92-5
LOCK WASHER,5/16"
1шт.
49
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC
1шт.
50
NLS
NO LONGER SERVICED
- harness
1шт.
51
193-1002
NUT,Keps, #8 - 32, w/ Ext Tooth LW
AND WASHER - No. 8 - 32 NC, plated
1шт.
52
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
54
R30818
ALTERNATOR
- 12 volt Motorola No.8AR2026F, parts list Figure 56
1шт.
55
13-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
HHCS - 1/2" -13 NC x 2-1/4"
1шт.
56
92-8
LOCK WASHER,1/2"
1шт.
57
R30381
BRACKET
- mounting, alternator
1шт.
58
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
2шт.
59
92-6
LOCK WASHER,3/8"
2шт.
60
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
61
92-5
LOCK WASHER,5/16"
1шт.
62
195-21
WASHER,5/16"
- flat, 5/16"
1шт.
63
R29597
STRAP
- adjusting, alternator
1шт.
64
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
1шт.
65
80680
LOCK WASHER,3/8 0.381 CST ZND
WASHER, LOCK, 3/8"
1шт.
66
D41076
STRAP
- wire, headlight
2шт.
67
D41075
STUD
- strap
2шт.
68
REF
INSTRUCTION
LIGHT - head, see Figure 72 for lights
2шт.
69
A11768
ELECTRICAL WIRE
WIRE - jumper
1-2шт.
