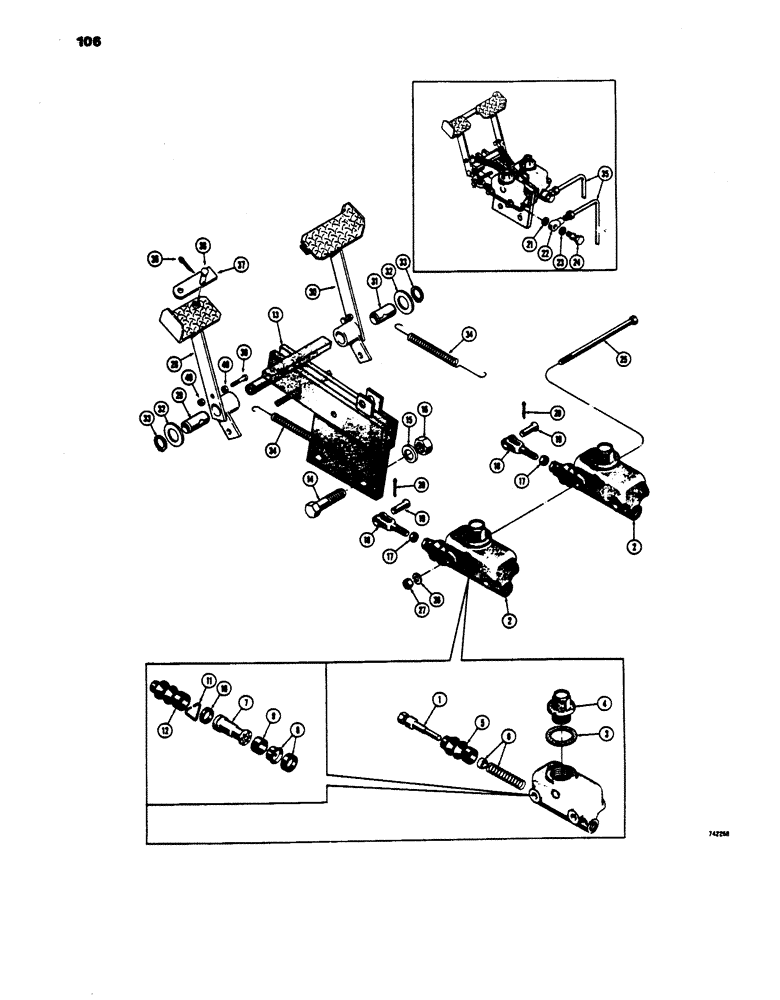

Запчасти Case 450 (106) - BRAKE PEDALS, USED BEFORE LOADER TRANS. SN. 2644199, USED BEFORE DOZER & DRAWBAR TRANS. S.N. 2644572 (05) - UPPERSTRUCTURE CHASSIS

1

R52998

ROD

- push (Replaces 33345)

1шт.

2

31481

CYLINDER

ASSEMBLY - master, Includes: Ref.#3 -12

2шт.

3

A19755

GASKET

- filler cap

1шт.

4

A19918

CAP

- filler

1шт.

5

33346

BOOT

- master cylinder

1шт.

6

33352

SPRING

RETAINER AND SPRING ASSEMBLY

1шт.

5896

KIT

- master cylinder repair, Includes: Ref.#7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE

1шт.

9

NSS

NOT SOLD SEPARAT

CUP - master cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - piston stop

1шт.

11

NSS

NOT SOLD SEPARAT

LOCKWIRE - piston stop

1шт.

12

33346

BOOT

- master cylinder

1шт.

13

D34918

SUPPORT

PLATE - mounting, brake

1шт.

14

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

25-1010

NUT,5/8"-11, G5

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

2шт.

18

D43830

YOKE

END - threaded

2шт.

19

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke

2шт.

20

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

2шт.

21

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inlet connection (Front)

2шт.

22

50861

FITTING

- inlet

2шт.

23

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection (Rear)

2шт.

24

A12864

BOLT

- retaining, Inlet fitting

2шт.

25

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

2шт.

26

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

2шт.

28

D42838

PEDAL

- brake, L.H., Includes: Ref.#29

1шт.

29

D40392

BUSHING

- brake pedal

1шт.

30

D42837

PEDAL

- brake, R.H., Includes: Ref.#31

1шт.

31

D40392

BUSHING

- brake pedal

1шт.

32

195-45

WASHER,3/4"

2шт.

33

T25683

SNAP RING,#75, Ext

Ring, Snap, , brake pedal #75, Ext

2шт.

34

R33370

SPRING

- return, brake pedal

2шт.

35

D34921

X

TUBE - master cylinder to transmission (Use D45396 Hose)

2шт.

35

D45396

HOSE,3.17mm ID x 419.1mm L

- master cylinder to transmission (Not shown)

2шт.

36

141-3

CLEVIS PIN,5/16" x .940"

PIN - lock

1шт.

37

D42840

LOCK

- brake pedal

1шт.

38

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

39

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

40

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

4шт.
