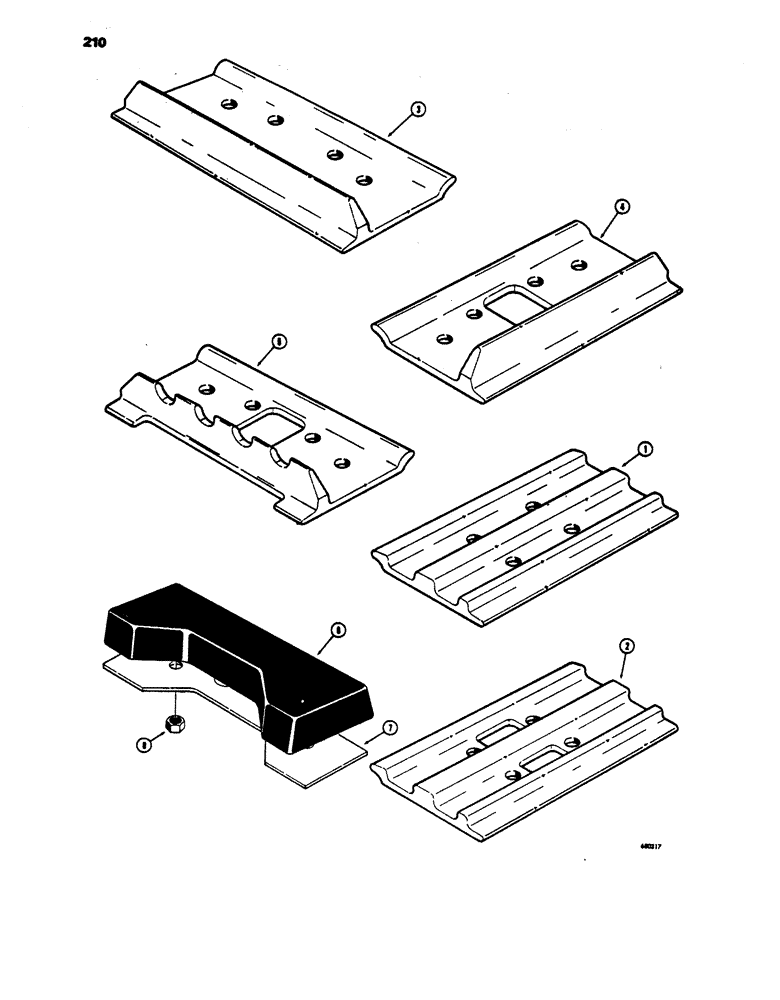

Запчасти Case 450 (210) - TRACK SHOES (NON OVER LAPPING), USED BEFORE TRACTOR SN 3050801, SEMI-GROUSER, CLOSED (04) - UNDERCARRIAGE

1

D41606

PLATE

SHOE - track, 12" (All models)

74шт.

1

D41608

X

SHOE - track, 14" (All Drawbar and Dozer models except Power Angle-Tilt Dozer)

74шт.

1

D41609

SHOE - track, 16" (Drawbar Models only)

72шт.

1

D41610

SWITCH

SHOE - track, 18" (Drawbar Models only)

72шт.

1

D41611

SHOE - track, 20" (Drawbar Models only)

72шт.

2

D41613

TRACK SHOE

SHOE - track, 12" (All models), semi grouser open center

74шт.

2

D41614

X

SHOE - track, 14" (All Dozer and Drawbar models except Power Angle-Tilt Dozers), semi grouser open center

74шт.

2

D41615

SHOE - track, 16" (Drawbar models only), semi grouser open center

72шт.

3

D41586

TRACK SHOE

SHOE - track, 12" (All models), grouser closed

74шт.

3

D41584

X

SHOE - track, 14" offset (L.H.) All Power Angle-Tilt Dozer Models only, grouser closed

36шт.

3

D41585

TRACK SHOE

SHOE - track, 14" offset (R.H.) All Power Angle-Tilt Dozer Models only, grouser closed

36шт.

3

D43479

TRACK SHOE

SHOE - track, 14" (Drawbar and all Power Angle Dozer Models only), grouser closed

74шт.

3

D41588

X

SHOE - track, 16" (Drawbar Models only), grouser closed

72шт.

3

D41589

NO LONGER SERVICED

SHOE - track, 18" (Drawbar Models only), grouser closed

72шт.

3

D41590

NO LONGER SERVICED

SHOE - track, 20" (Drawbar Models only), grouser closed

72шт.

4

D41594

TRACK SHOE

SHOE - track, 12" (All models), grouser open center

74шт.

4

D41592

X

SHOE - track, 14" offset (L.H.) All Power Angle-Tilt Dozer Models only, grouser open center

36шт.

4

D41593

X

SHOE - track, 14" (Drawbar and all Power Angle Dozer Models only), grouser open center

36шт.

4

D41595

TRACK SHOE

SHOE - track, 14" (Drawbar and all Power Angle Dozer Models only), grouser open center

74шт.

4

D41596

TRACK SHOE

SHOE - track, 16" (Drawbar Models only), grouser open center

72шт.

4

D41597

X

SHOE - track, 18" (Drawbar Models only), grouser open center

72шт.

4

D41598

SHOE - track, 20" (Drawbar Models only), grouser open center

72шт.

5

D41600

TRACK SHOE

SHOE - track, 12" (All models), grouser ice

74шт.

5

D41601

SHOE - track, 14" (Drawbar and all Power Angle Dozer Models only), grouser ice

74шт.

5

D41602

TRACK SHOE

SHOE - track, 16" (Drawbar Models only), grouser ice

72шт.

6

R31222

SHOE

- track, rubber (Cannot be used with track guides)

74шт.

7

D44154

SHIM

- shoe (Use (2) R31214 for service), rubber

74шт.

7

R31214

SHIM,.135" Thk

Shoe (Not shown), Rubber track shoe .135" Thk

148шт.

8

131-367

LOCK NUT

NUT - hex, special, rubber track shoe

148шт.
