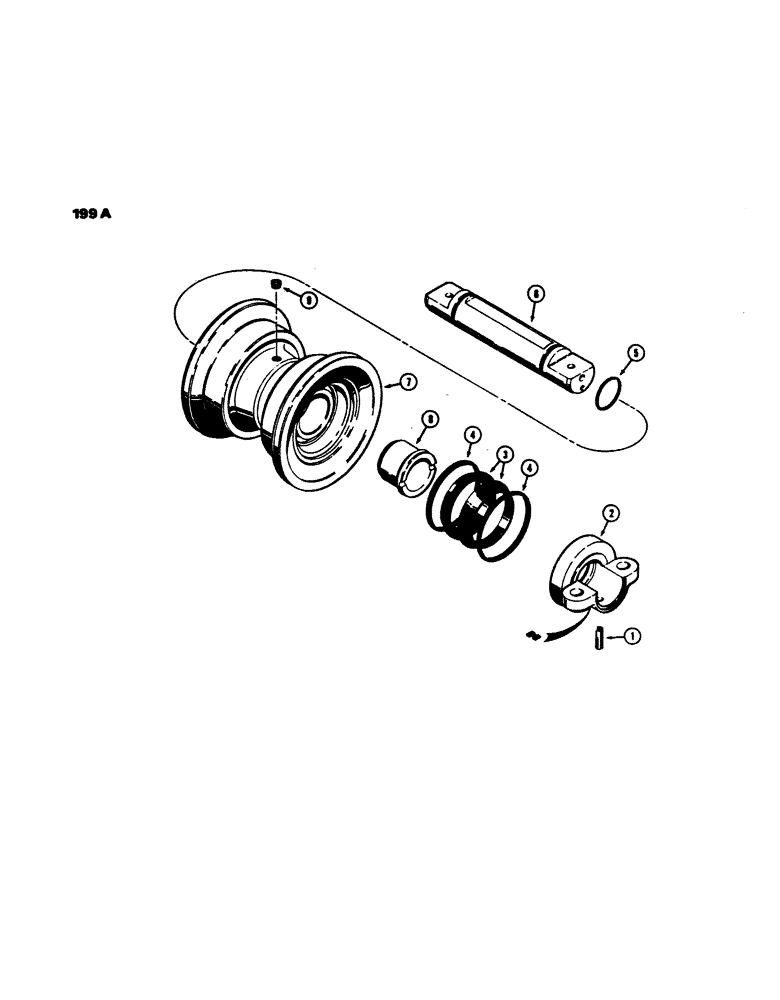

Запчасти Case 450 (199A) - R33565 TRACK ROLLER, FOR IDENTIFICATION - SEE ITEM #2 OF ILLUSTRATION (04) - UNDERCARRIAGE

R33565

ROLLER

- track, Includes: Ref.#1 - 9

10шт.

1

R33570

PIN

- cap retaining

2шт.

2

R33568

BRACKET

CAP - end collar

2шт.

R33564

SEAL

- face, Includes: Ref.#3 & 4

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

4

NSS

NOT SOLD SEPARAT

RING - sealing

2шт.

5

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O"ring

2шт.

6

R33569

SHAFT

- roller

1шт.

R33567

ROLLER

HUB ASSEMBLY - roller, Includes: Ref.#7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

HUB - roller

1шт.

8

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- roller

2шт.

9

R33557

PLUG

- roller

1шт.
