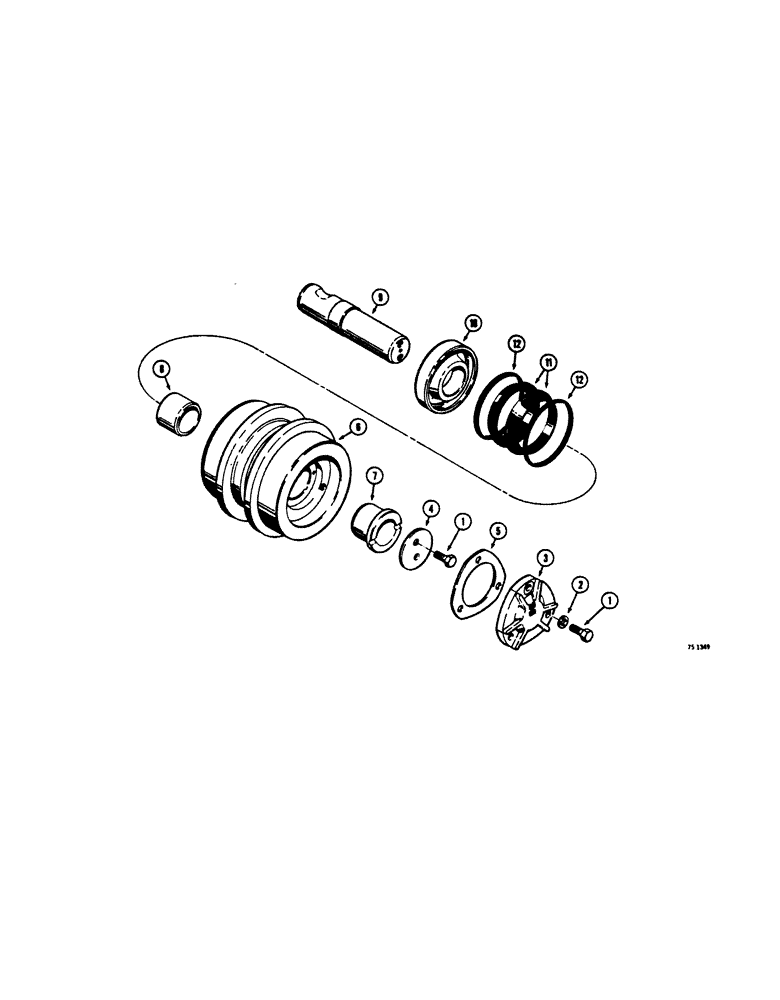

Запчасти Case 450 (199A[1]) - R33965 TRACK CARRIER ROLLER FOR IDENTIFICATION - SEE ITEM 3 OF ILLUSTRATION (04) - UNDERCARRIAGE

R33965

ROLLER

- track carrier, Includes: Ref.#1 - 12

2-4шт.

1

513-704

BOLT

HHCS - metric

5шт.

2

D32117

COPPER WASHER

WASHER, COPPER, Hardened

3шт.

3

R33959

CYLINDER END CAP

CAP - roller

1шт.

4

R33960

PLATE

RETAINER - washer

1шт.

5

R33964

GASKET

- cap

1шт.

R33967

CARRIER

HUB ASSEMBLY - roller, Includes: Ref.#6 - 8

1шт.

6

R33966

HUB - roller

1шт.

7

R33951

BUSHING

- roller

1шт.

8

R33958

BUSHING

- roller

1шт.

R33969

SHAFT

ASSEMBLY - roller, Includes: Ref.#9 & 10

1шт.

9

R33968

SHAFT - roller

1шт.

10

R33962

RETAINER

- seal

1шт.

R33607

SEAL

- face, Includes: Ref.#11 & 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

12

NSS

NOT SOLD SEPARAT

RING - sealing

2шт.
