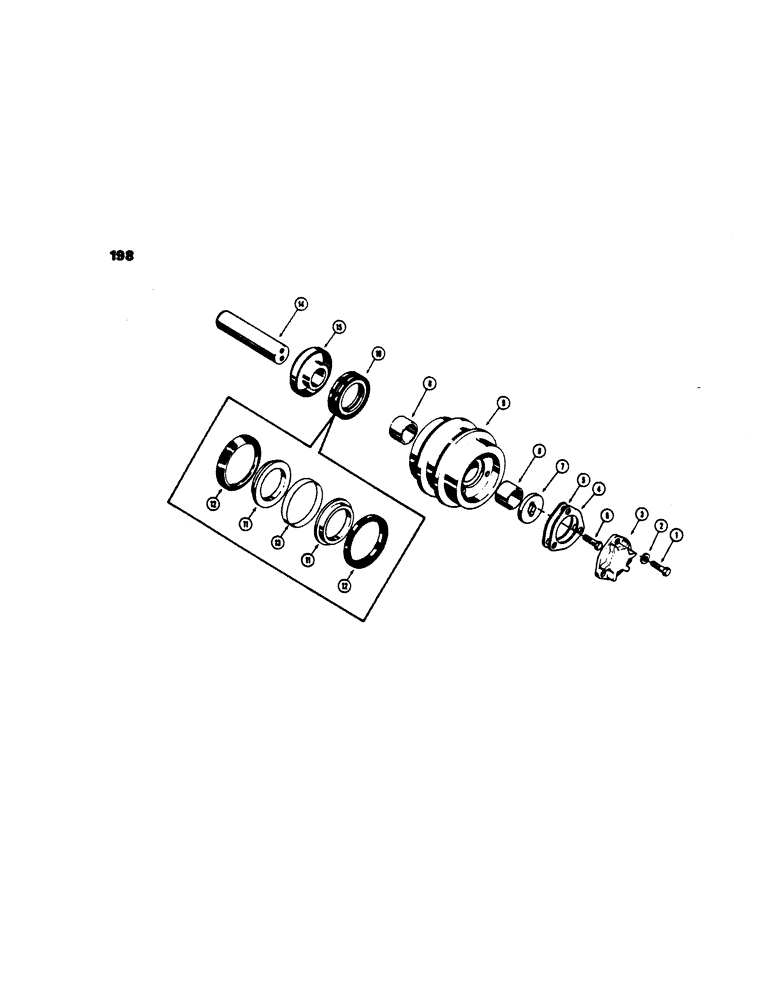

Запчасти Case 450 (198) - D48684 TRACK CARRIER ROLLER, TRACTOR SN 3050801 & AFTER, FOR I.D., SEE ITEM #3 OF ILLUSTRATION (04) - UNDERCARRIAGE

R33965

ROLLER

- track carrier, face sealed (Replaces D48684), Includes: Ref.#1 - 5

2-4шт.

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

2

D35288

WASHER

- copper

1шт.

3

R29288

COVER ASSY

COVER - roller

1шт.

4

D30384

SHIM,.010" Thk

(Brown) .010" Thk

1шт.

5

D30383

SHIM,.005" Thk

(Blue) .005" Thk

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

D30382

WASHER

- thrust

1шт.

8

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

9

D49945

HUB CAP

HUB - roller

1шт.

10

D35267

SEAL

- face, Includes: Ref.#11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair, Includes: Ref.12 & 13

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

14

D49100

SHAFT

- roller

1шт.

15

D35265

COLLAR

BUSHING - thrust

1шт.
