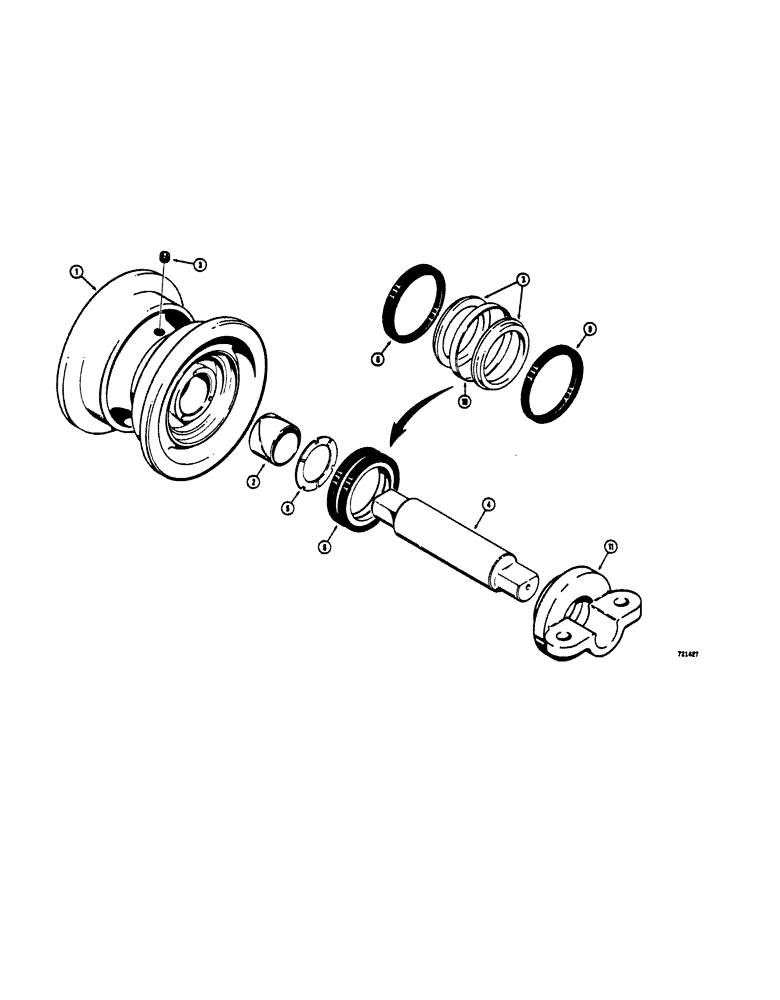

Запчасти Case 450 (198[1]) - R24547 TRACK ROLLER TRACTOR SN 3050801 AND AFTER FOR IDENTIFICATION - SEE ITEM 11 OF ILLUSTRATION (04) - UNDERCARRIAGE

R24547

ROLLER

- track, Includes: Ref.#1 & 11

10шт.

1

R24546

ROLLER

HUB - track roller

1шт.

2

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

- split

2шт.

3

221-841

PLUG

- pipe, allen head

1шт.

4

R24544

SHAFT

- roller

1шт.

5

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

- thrust

2шт.

6

D35267

SEAL

- face, Includes: Ref.#7 - 10

2шт.

7

NSS

NOT SOLD SEPARAT

BODY - seal

1шт.

D36826

SEAL KIT

KIT - field repair, Includes: Ref.#8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

11

R24545

RETAINER

CAP - roller cover and mounting

2шт.
