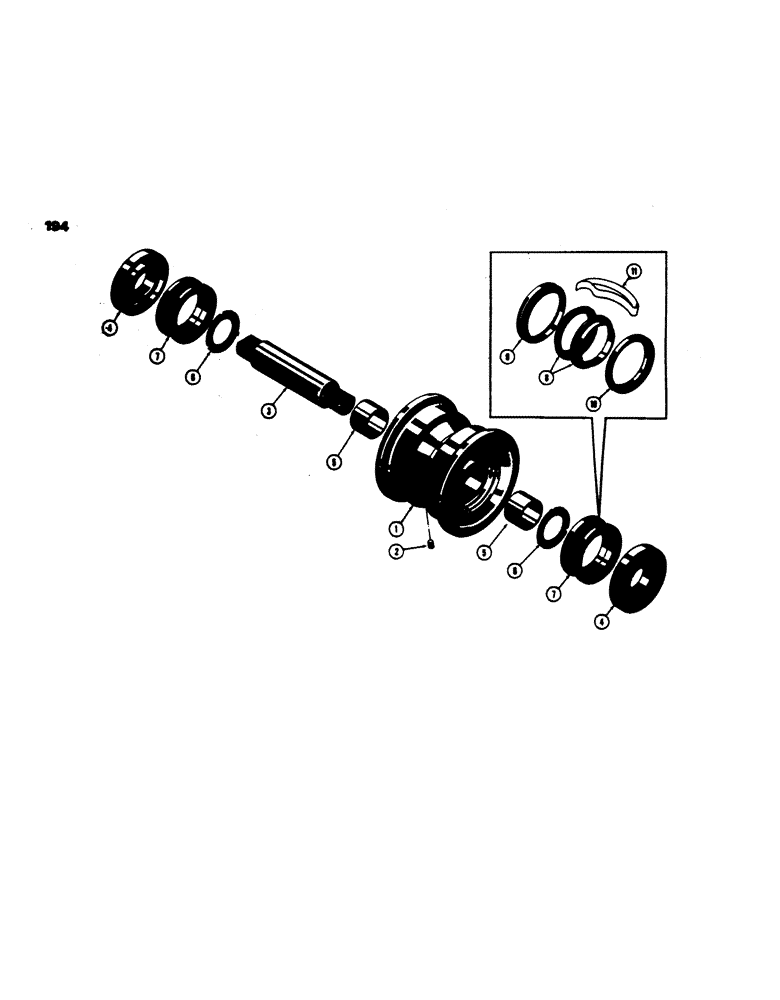

Запчасти Case 450 (194) - D35350 TRACK ROLLER, USED BEFORE TRACTOR SERIAL NO. 3040800, (04) - UNDERCARRIAGE

R36468

ROLLER

- track (When stock is exhausted, order R5017 kit for service) (Replaces D35350), Includes: Ref.#1 - 11

10шт.

R5017 kit consist of: R24034 roller, (5) D51644 shims and 9-71685 instruction sheets.

1шт.

1

D35351

HUB

- track roller, used on D35350 roller only (When stock is exhausted, service with R24033 hub and D43848 shaft)

1шт.

2

221-841

PLUG

- pipe, Allen head

1шт.

3

D35295

SHAFT - track roller (D35351 hub only)

1шт.

4

D35265

COLLAR

- thrust

2шт.

5

D35242

BUSHING

- split, use D46396 bushing for service

2шт.

5

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

6

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

- thrust

2шт.

7

D35267

SEAL

- face, Includes: Ref.#8 - 11

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal

1шт.

D36826

SEAL KIT

KIT - field repair, Includes: Ref.#9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.
