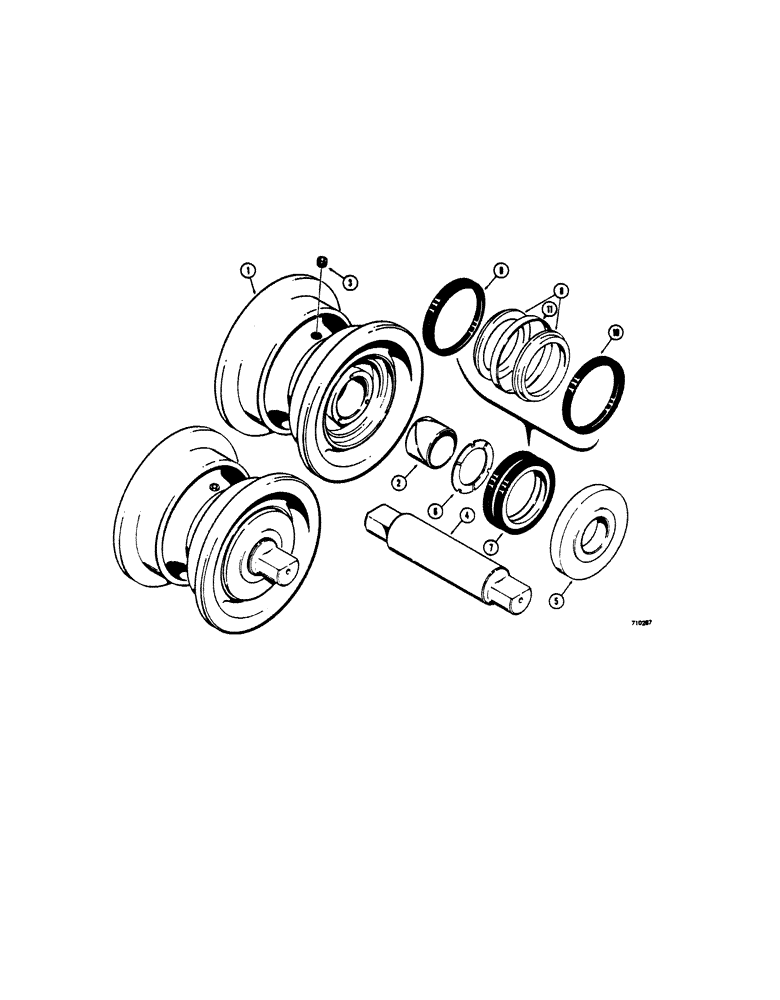

Запчасти Case 450 (194[1]) - D43860 AND R24034 TRACK ROLLERS USED TRACTOR SN. 3040800 THRU 3050801 AS PRODUCTION ITEM (04) - UNDERCARRIAGE

NSS

NOT SOLD SEPARAT

ROLLER - track (Use R5017 kit for service), Includes: Ref.#1 - 11

10шт.

R5017 kit consists of: R24034 roller, (5) D51644 shims and 9-71685 instructions sheets.

1шт.

1

R24033

ROLLER, TRACK

HUB - track roller, Includes: Ref.#2

1шт.

2

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

3

221-841

PLUG

- pipe, Allen head

1шт.

4

D43858

SHAFT

- track roller

1шт.

5

D35265

COLLAR

- thrust

2шт.

6

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

- thrust

2шт.

7

D35267

SEAL

- face, Includes: Ref.#8 - 11

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal

1шт.

D36826

SEAL KIT

KIT - field repair, Includes: Ref.#9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.
