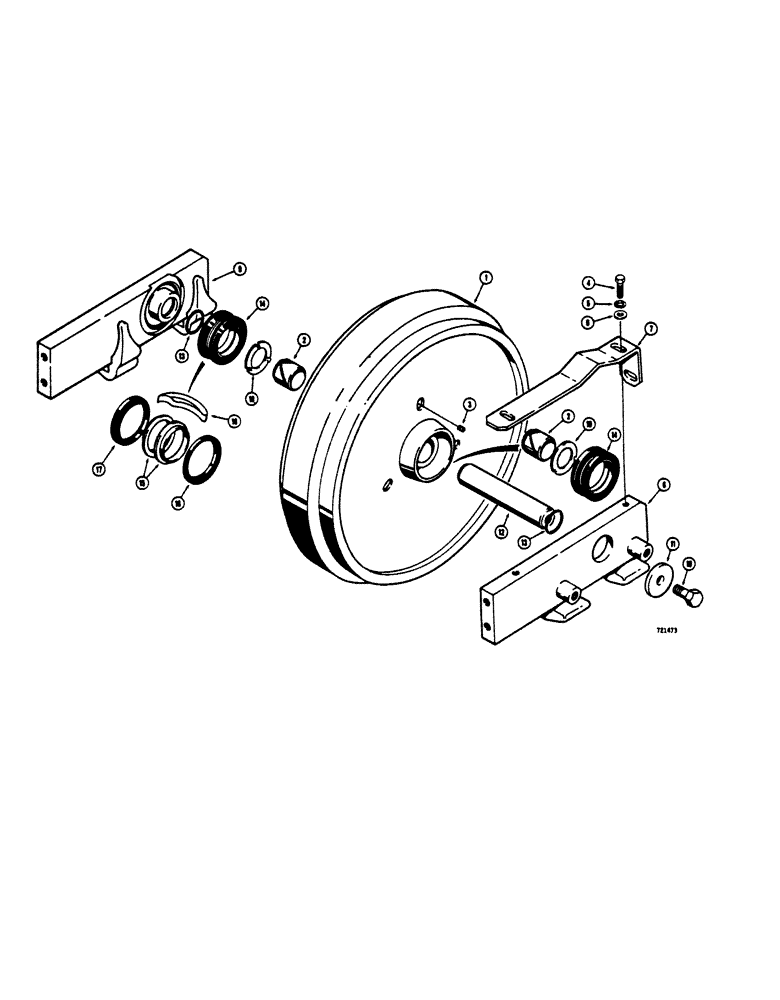

Запчасти Case 450 (192[1]) - IDLER WHEEL TRACTOR SN. 305801 AND AFTER (04) - UNDERCARRIAGE

R24625

FRONT IDLER

IDLER WHEEL - complete, Includes: Ref. 1 - 19

1шт.

1

R24626

HUB CAP

HUB - idler wheel, Includes: Ref.#2

1шт.

2

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

- split

2шт.

3

221-841

PLUG

- hex., socket (1/4" NPT)

1шт.

4

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

6

R24323

WASHER

- special

6шт.

7

R24642

COVER

- idler bracket

2шт.

8

R30671

BRACKET

- idler mounting, R.H.

1шт.

9

R30670

BRACKET

- idler mounting, L.H.

1шт.

10

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

2шт.

11

D21262

WASHER

- special

2шт.

12

R24644

SHAFT

- idler

1шт.

13

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O"ring

2шт.

14

D35267

SEAL

- face, Includes: Ref.#15 - 18

2шт.

15

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair, Includes: Ref.#16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

19

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

- thrust

2шт.
